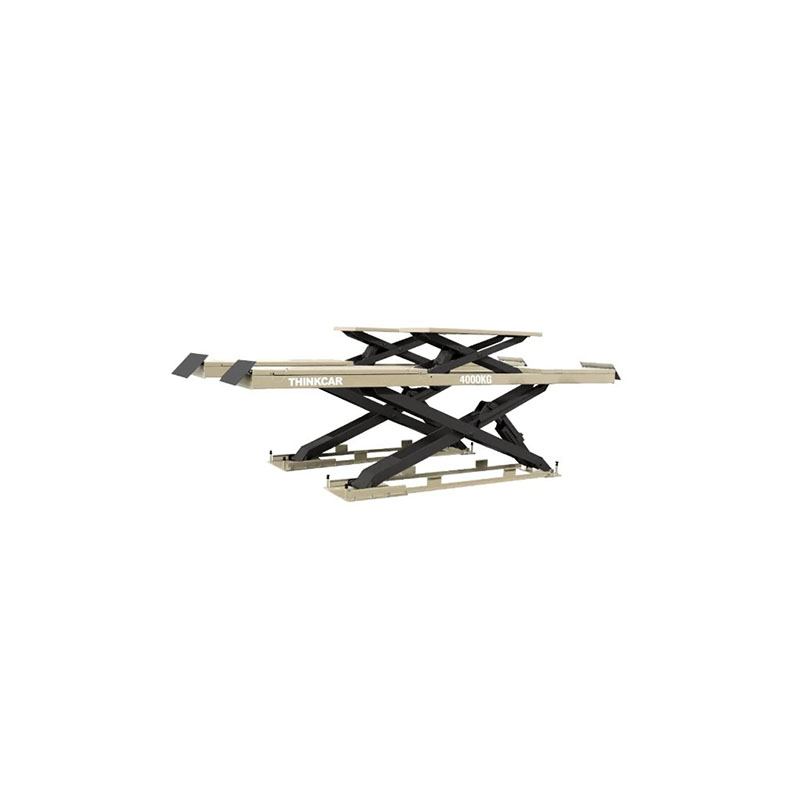

Thinkcar TVL840 Alignment Scissor Lift

Thinkcar TVL840 Alignment Scissor Lift

Thinkcar TVL840 Alignment Scissor Lift

$9,870.00
MSRP: $9,995.00
You Save: $125.00 (1 %)
Part Number: 262962
Brand: ThinkCar
Manufacturer Part No: TVL840
Mfg Warranty:  (see decription)
Heavy Duty Pros Quality Aftermarket Parts

Superior Quality Parts: Heavy Duty Pros parts meet and exceed the OEM quality specifications.

Heavy Duty Pros Fast Shipping Aftermarket Parts

Fast Shipping: We ship from warehouses across the US to ensure the quickest delivery.

Heavy Duty Pros Customer Service Aftermarket Parts

Expert Technical Advice: Industry repair technicians are standing by to provide expert advice for your repair.

Heavy Duty Pros Competitive Savings on Aftermarket Parts

Huge Savings: We offer competitive online pricing for significant savings.

Product Details & Specifications
  • The underground installation saving working space.
  • Independent control box, low voltage control, good safety performance.
  • Hydraulic volume synchronized cylinder, the platform operates synchronously and stably.
  • Hydraulic lock and mechanical double-tooth safety claw, double insurance, safe and reliable.
  • Hydraulic failure and overload safety valve protection.
  • Adopt oil-free and super wear-resistant material sliding block.
  • Equipped with high-quality hydraulic and electrical components from Italy, Germany, Japan, etc.
  • Using manganese plate support arm and aluminum motor pump station, strong power.
  • The scissors can be pulled out, suitable for extended long vehicle models.
  • Integral base, strong horizontal adjustment ability, precise and adjustable precision, especially suitable for four-wheel alignment detection.
Rated load: 4000kg
Lifting height: 1850mm
Initial height: 330mm
Lifting time: less than or equal to 50s
Lowering time: less than or equal to 20s
Platform length: 4500mm
Platform width: 630mm
Power: 2.2kw
Voltage: AC 400V or 230V plus or minus 5% 50Hz
Hydraulic Oil: 12L( Winter: N32# Summer: N46# )
Net weight: 2050kg
Drive mode: electro-hydraulic
Working Temperature: 5-40 degree C
Air Pressure: 0.6-0.8Mpa
