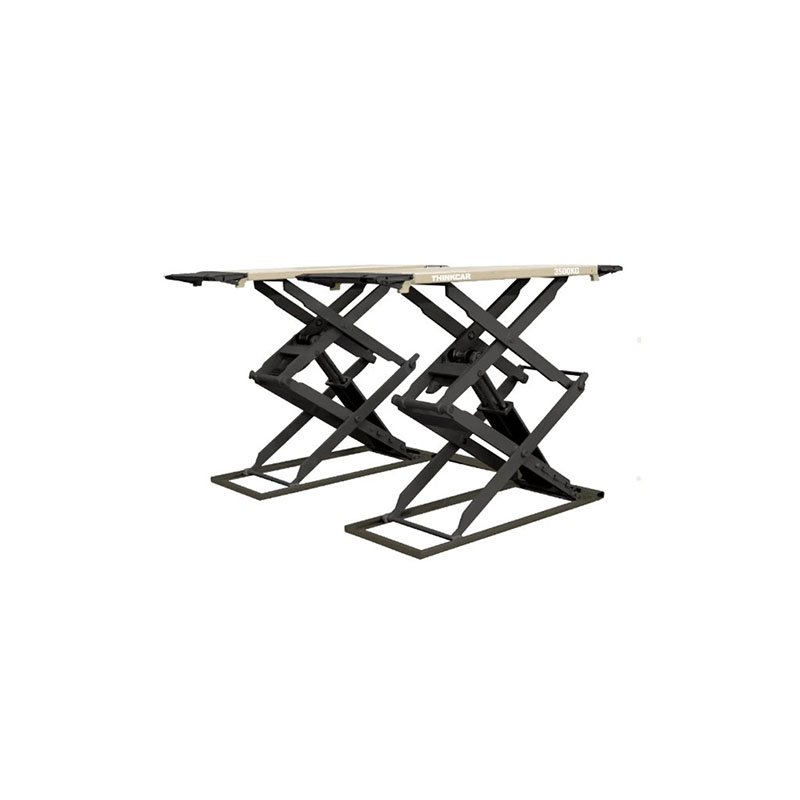

Thinkcar TVL735 Ultra-thin Scissor Lift

$5,880.00

MSRP: $5,995.00

You Save: $115.00 (2 %)

Quantity:

Part Number: 262961

Brand: ThinkCar

Manufacturer Part No: TVL735

Mfg Warranty: (see decription)

Superior Quality Parts: Heavy Duty Pros parts meet and exceed the OEM quality specifications.

Fast Shipping: We ship from warehouses across the US to ensure the quickest delivery.

Expert Technical Advice: Industry repair technicians are standing by to provide expert advice for your repair.

Huge Savings: We offer competitive online pricing for significant savings.

Product Details & Specifications

Ultra-thin structure, no need for construction pits, easy installation.
Equipped with a full set of imported oil cylinders and ball valve components, with reliable quality.
The approach bridge serves as an extension platform and is suitable for different vehicle types.
Hydraulic volume synchronous cylinder, the platform operates synchronously and stably.
24V limit control box, safe, simple and convenient.
Humanized safety design, anti-presser foot setting and pneumatic safety lock.
Using manganese plate support arm and aluminum motor pump station, strong power.
Overload redundancy design, passed 120% dynamic loading and 150% express loading tests.

Rated load: 3500kg

Lifting height: 1850mm

Initial height: 115mm

Lifting time: less than or equal to 50s

Lowering time: less than or equal to 20s

Platform length: Standard 1475-2000mm

Platform width: 650mm

Power: 2.2kw

Voltage: AC 400V or 230V plus or minus 5% 50Hz

Hydraulic Oil: 12L( Winter: N32# Summer: N46# )

Net weight: Standard 870kg

Drive mode: electro-hydraulic

Working Temperature: 5-40 degree C

Air Pressure: 0.6-0.8Mpa
