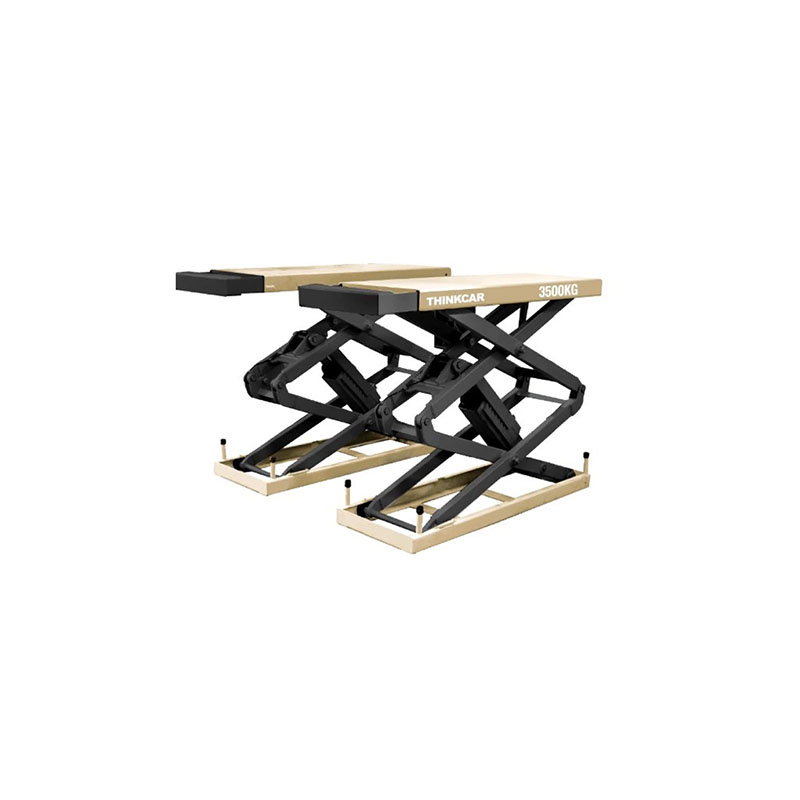

Thinkcar TVL635 Scissor Lift

$4,410.00

MSRP: $4,695.00

You Save: $285.00 (6 %)

Quantity:

Part Number: 262960

Brand: ThinkCar

Manufacturer Part No: TVL635

Mfg Warranty: (see decription)

Superior Quality Parts: Heavy Duty Pros parts meet and exceed the OEM quality specifications.

Fast Shipping: We ship from warehouses across the US to ensure the quickest delivery.

Expert Technical Advice: Industry repair technicians are standing by to provide expert advice for your repair.

Huge Savings: We offer competitive online pricing for significant savings.

Product Details & Specifications

Underground installation, saving work space.
Equipped with a full set of imported oil cylinders and ball valve components, with reliable quality.
The platform length is adjustable and suitable for different models.
Hydraulic volume synchronized cylinder, platform operation is synchronous and stable.
24V limit control box, safe, simple and convenient.
Hydraulic lock and mechanical double-tooth safety claw, double insurance, safe and reliable.
Overload redundancy design, passed 120% dynamic loading and 150% express loading tests.

Rated load: 3500kg

Lifting height: 2130mm

Initial height: 330mm

Lifting time: less than or equal to 55s

Lowering time: less than or equal to 20s

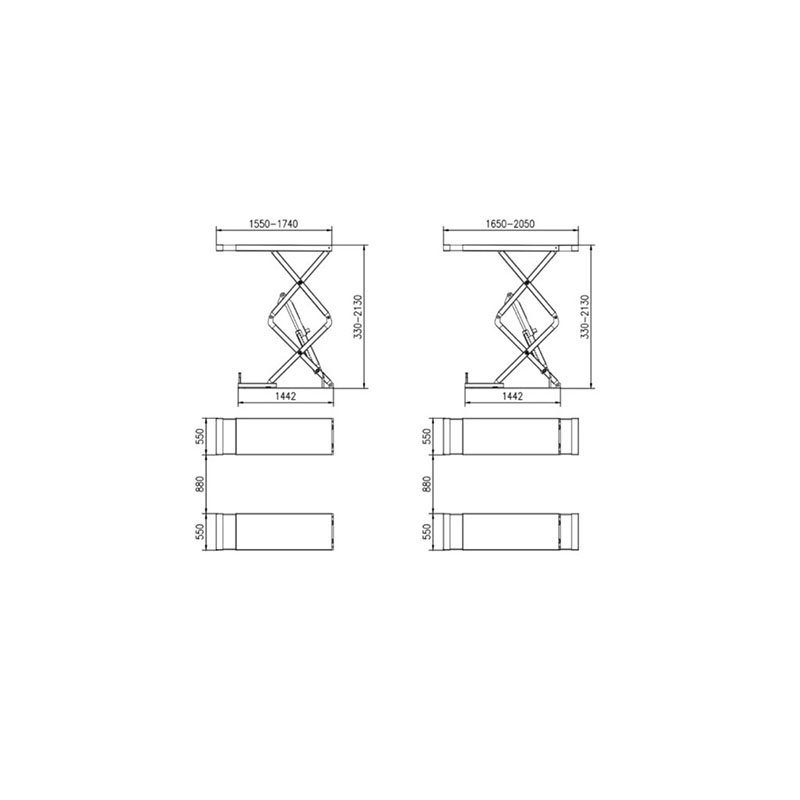

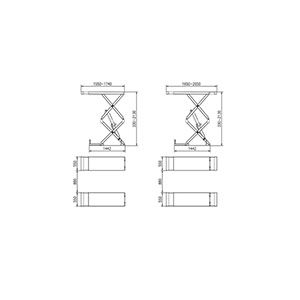

Platform length: Standard 1550-1740mm, double pull 1650-2040mm

Platform width: 550mm

Power: 2.2kw

Voltage: AC 400V or 230V plus or minus 5% 50Hz

Hydraulic Oil: 12L( Winter: N32# Summer: N46# )

Net weight: Standard 696kg, double pull-out 722kg

Working Temperature: 5-40 degree C

Air Pressure: 0.6-0.8Mpa
