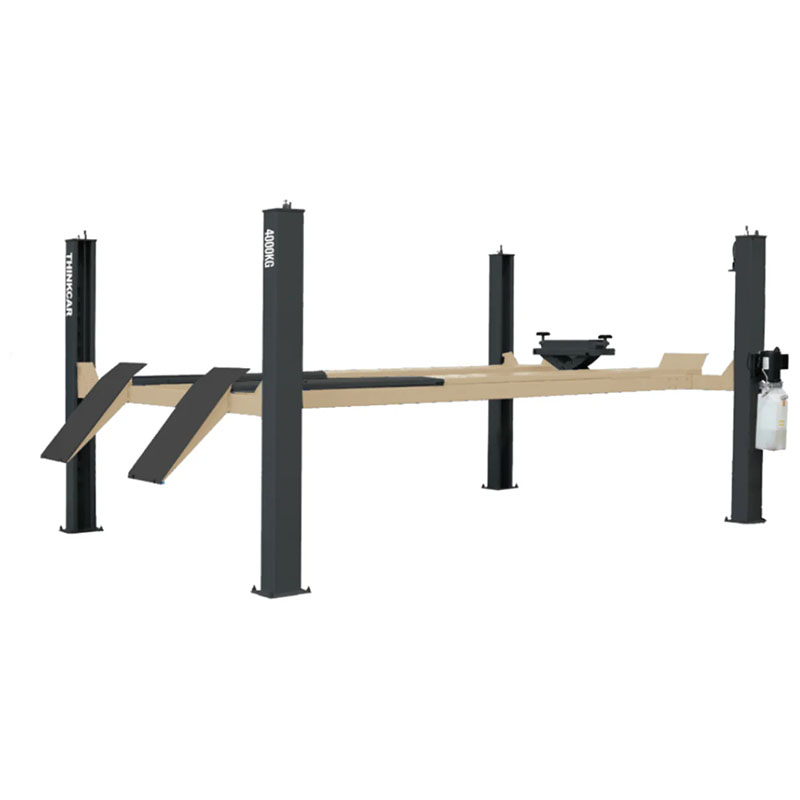

Thinkcar TVL440 Four Post Lift
$6,510.00
MSRP: $6,895.00
You Save: $385.00 (6 %)
Part Number: 262957
Brand: ThinkCar
Manufacturer Part No: TVL440
Mfg Warranty: (see decription)
Superior Quality Parts: Heavy Duty Pros parts meet and exceed the OEM quality specifications.
Fast Shipping: We ship from warehouses across the US to ensure the quickest delivery.
Expert Technical Advice: Industry repair technicians are standing by to provide expert advice for your repair.
Huge Savings: We offer competitive online pricing for significant savings.
|
Product Details & Specifications
- THINKCAR Lift is using high-quality Q235 hot-rolled plates, the 4-ton Two-post lift adopts a thickness of 5mm+ steel materials, while other brands are mainly using 4.75mm thick steel or even less. The scissor lift scissor arms all use Q345 manganese steel solid scissor arms.
- All oil cylinder seals adopt double-channel welding sealing technology, and the piston seals adopt high-quality polyurethane sealing rings for double-channel sealing.
- THINKCAR Two-posts lift series are equipped with 2+3-section supporting arms as standard, which increases the range of movement and is applicable to a wider range of vehicle models.
- THINKCAR Lift is using anti-falling chain wheel, reliable and safety.
- THINKCAR Lift has 8 pieces chains and 115 sections, while other brands on the market only supply 7 pieces chains.
- Steel wire rope with steel core diameter up to 9mm+, while other brands on the market less than 8mm.
- The oil cylinder diameter is 40MM, while other brands on the market is 38MM or less.
- The sliding table is using 6MM steel plate, while other brands on the market are mainly 5MM or less
- Pneumatic synchronous unlocking.
- Pillar design, easy to install.
- The platform is made of bent steel plates and the beams are made of square tubes.
- The cylinder adopts front fixation style to eliminate the risk of cylinder breakage.
- The platform spacing is adjustable to adapt to vehicles with different tire spacing.
- Cylinder 100% pressure holding test.
- CE certificate.
Rated load: 4000kg
Lifting height: 1700mm+400mm
Initial height: 180mm
Lifting time: less than or equal to 50s
Lowering time: less than or equal to 40s
Platform length: 4500mm
Platform width: 488mm
Power: 2.2kw
Voltage: 220V/380V
Hydraulic Oil: 10L( Winter: N32# Summer: N46# )
Net weight: 1200kg
Drive mode: electro-hydraulic
Working Temperature: 5-40 degrees C
Air Pressure: 0.6-0.8Mpa
|
|
|
