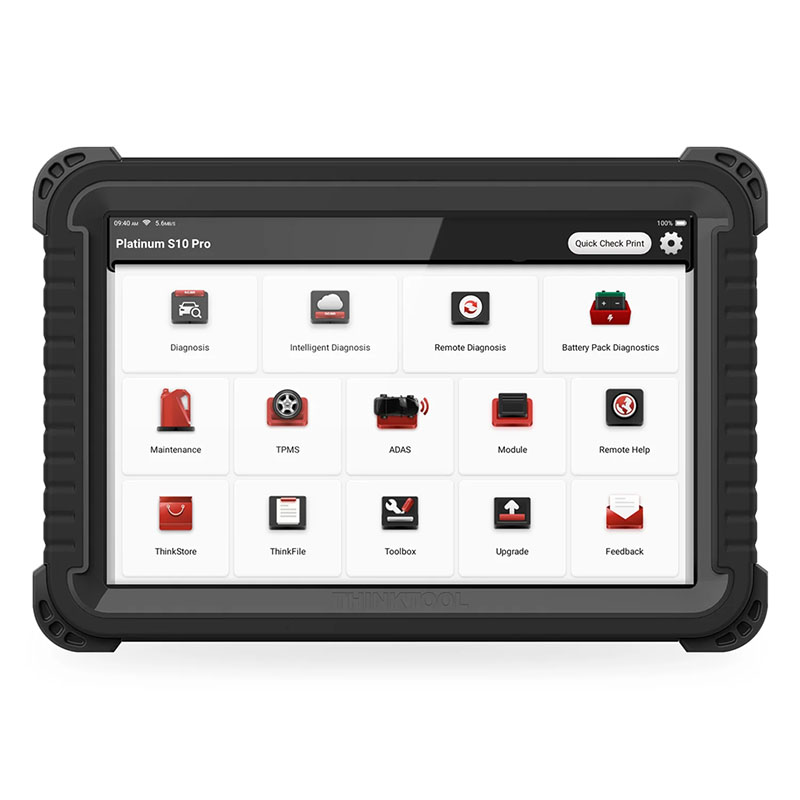

The THINKCAR Platinum S10 PRO is the latest in advanced automotive diagnostics, designed to deliver OE-level functionality with the power and speed of Android 10 technology. This professional diagnostic scanner offers full system coverage, allowing technicians to scan vehicles, read and clear fault codes, monitor live data, and perform special functions across a wide range of makes and models.
With cutting-edge hardware and intuitive software, the Platinum S10 PRO provides fast, accurate diagnostics for engine, transmission, ABS, airbags, and more. Whether you’re performing a full-system scan or targeting a specific issue, this tool delivers the precision and comprehensive coverage professional technicians need to stay ahead.
Combining advanced technology, user-friendly design, and the latest OE-level capabilities, the Platinum S10 PRO is the go-to diagnostic scanner for shops, mobile mechanics, and advanced DIYers who demand top performance and reliable results.
The THINKCAR Platinum S10 CAN FD is a comprehensive and expandable diagnostic tool designed for professional automotive technicians. Offering full system coverage across over 130 car brands, this powerful scanner supports both modern and older vehicles with 98% coverage of domestic OBDII vehicles and additional connectors for OBDI vehicles.

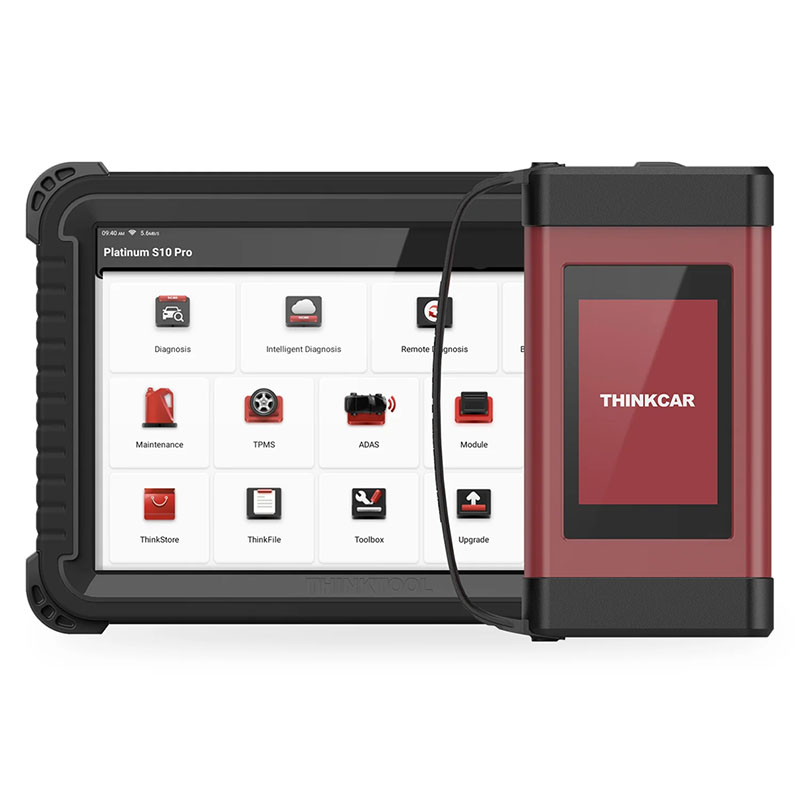

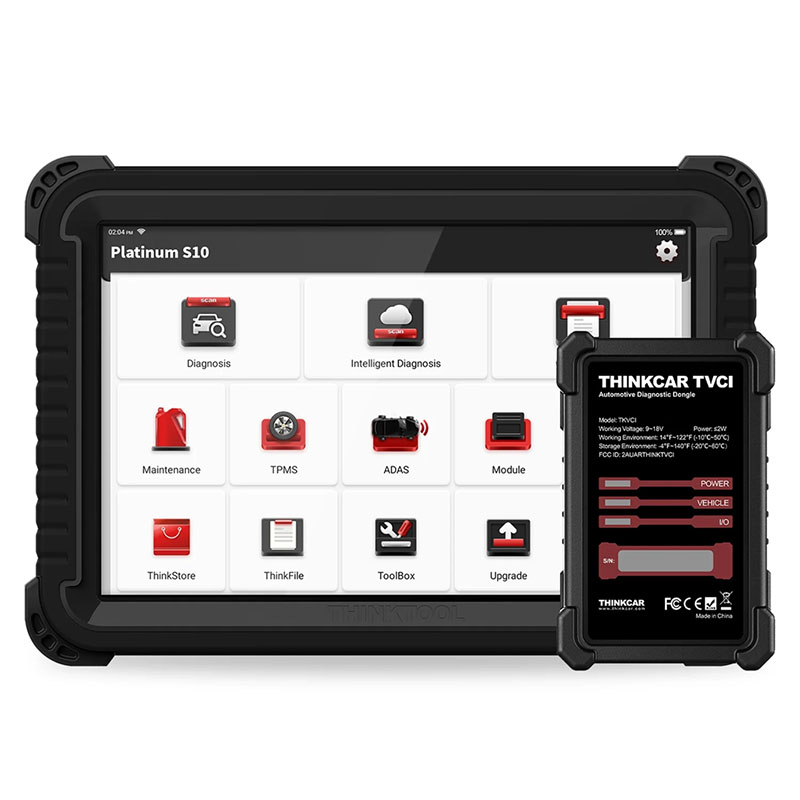

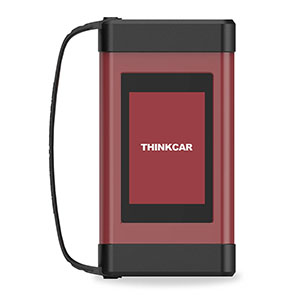

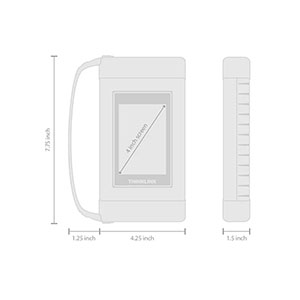

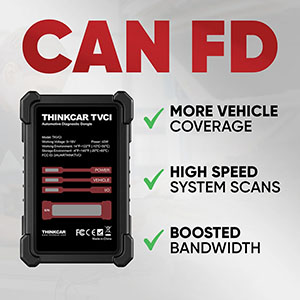

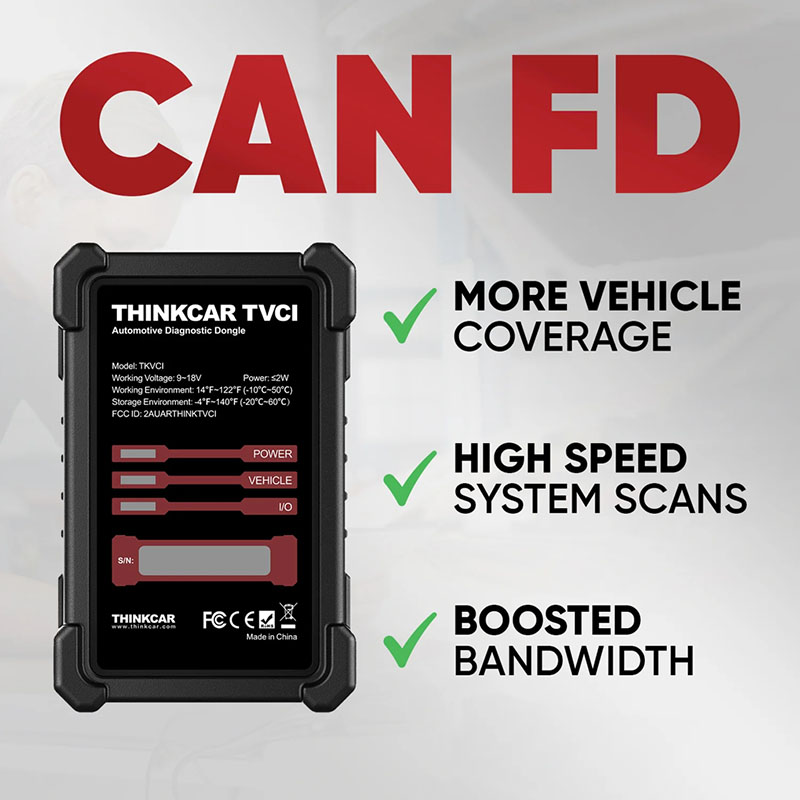

At the heart of the Platinum S10 CAN FD is its TVCI smart connector, which supports multiple communication modes including USB, Bluetooth, and WiFi, along with a wide range of diagnostic protocols like CAN FD. This flexibility ensures compatibility with the latest vehicle technology, keeping your shop ready for anything.
Packed with 41 reset functions, bi-directional controls, and advanced features such as TPMS services and ADAS calibration, the Platinum S10 CAN FD is the ultimate all-in-one diagnostic tool for shops handling everything from routine maintenance to advanced repairs.

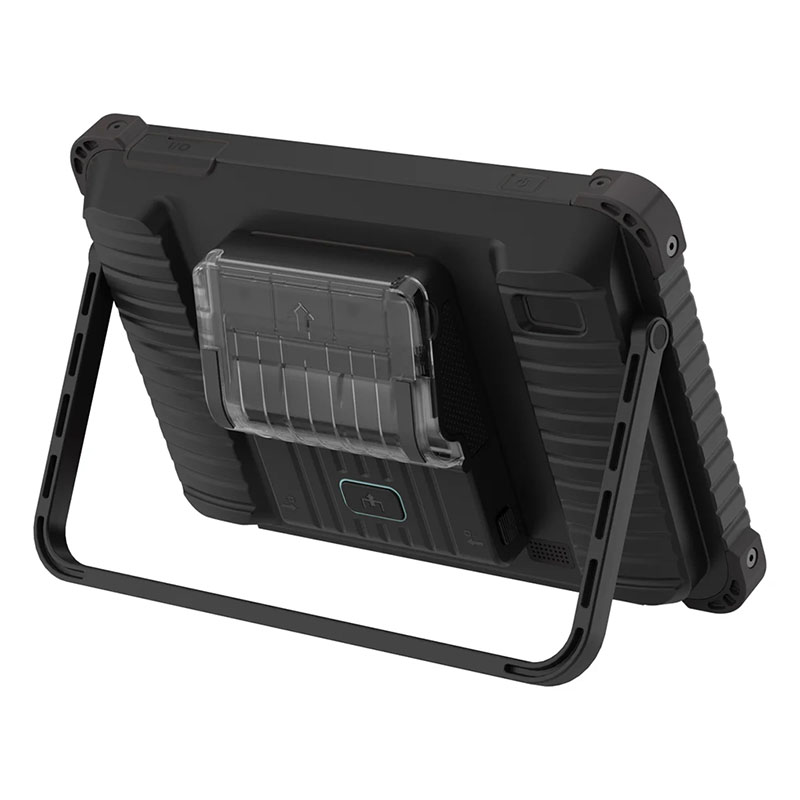

Built for the demands of a busy workshop, the magnesium alloy housing is durable enough to withstand a 3-foot drop, while 64GB of internal storage provides ample space for saving diagnostic reports and data. Convenient extras like a web browser, email client, and calculator add to its versatility, making it a true technician’s companion.
Stay up to date with easy software updates via WiFi or 4G, ensuring your diagnostics stay accurate and compatible with the latest vehicles and systems. Whether you’re diagnosing, programming, or performing advanced calibrations, the THINKCAR Platinum S10 CAN FD delivers the power, coverage, and durability today’s professionals demand.
Quick Start Guide
Platinum S10 Pro Features
- Provides powerful OEM level diagnostic features plus 35 maintenance reset functions all in one tool
- Coverage of 98% of domestic OBDII vehicles allows the tool to be used on numerous vehicles
- Includes most popular OBD1 adapters
- Software updates are available via Wi-Fi or 4G for reliable connectivity
- Has optional heavy-duty vehicle coverage, TPMS functionality, and ADAS calibration to provide additional functions
- Graphing Recording, and Replay of Data Streams
- Bi-functional control of vehicle operations, isolates issues, and eliminates unnecessary repairs
- Rugged exterior that can with stand a 3" drop
- Supports 12V & 24V passenger cars, commercial cars, hybrid, and heavy-duty
- The durable exterior case is made of magnesium alloy and its corners are reinforced with rubberized padding
Platinum S10 CAN FD Features
- 10" Inch Large Touchscreen

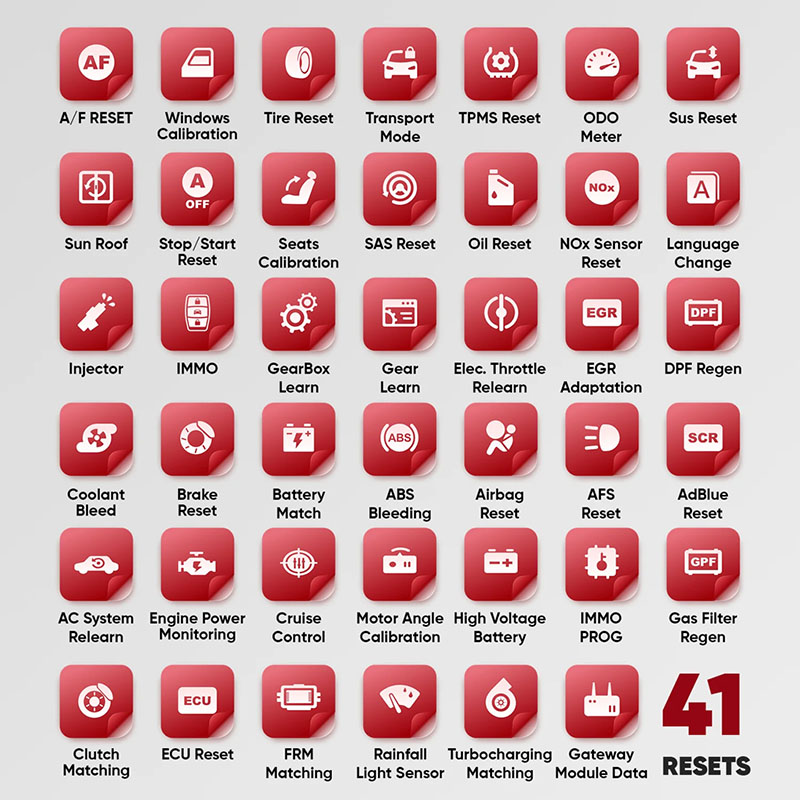

- 41 Maintenance Functions
- ADAS Calibration
- Bi-directional Communication for Actuation Testing

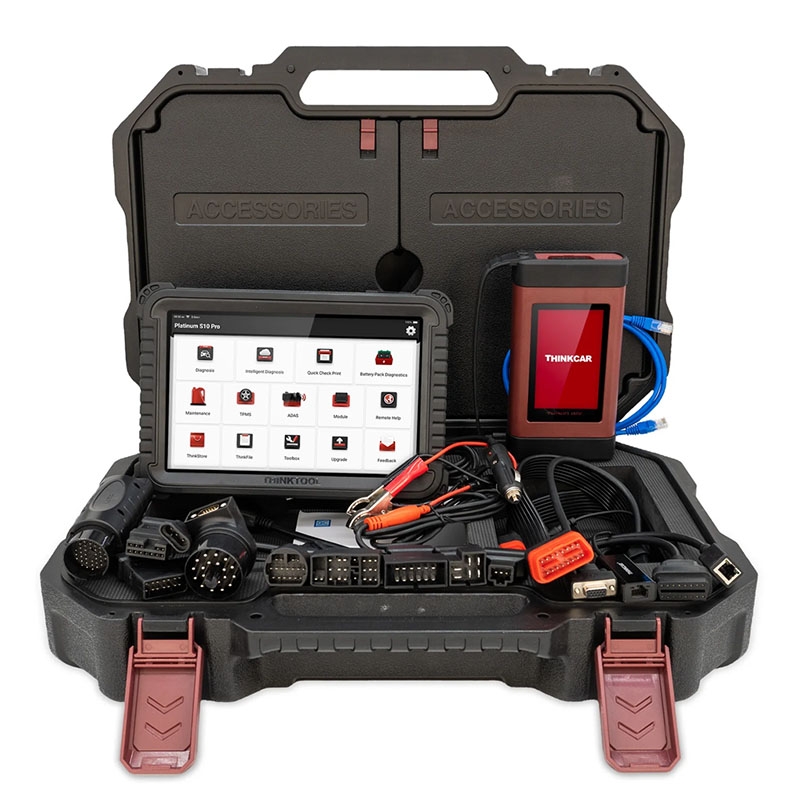

- Comes with 11 OBD1 and OBD2 adapters, catering to different vehicle types.
- Dealer & OEM Level Diagnostics
- Dual USB ports (USB C and USB A) for connecting to various devices and accessories.
- Full Diagnostics, Supports 12V & 24V Passenger Cars, Commercial Cars, Hybrid, and Heavy-Duty
- High-Quality Imaging: Includes a 13 MP HD camera with LED light
- Online Programing
- Reading and Clearing Fault Codes
- Live Data Stream
- TPMS & ADAS Calibration Support
- Provides Coverage on 98% of Domestic Vehicles

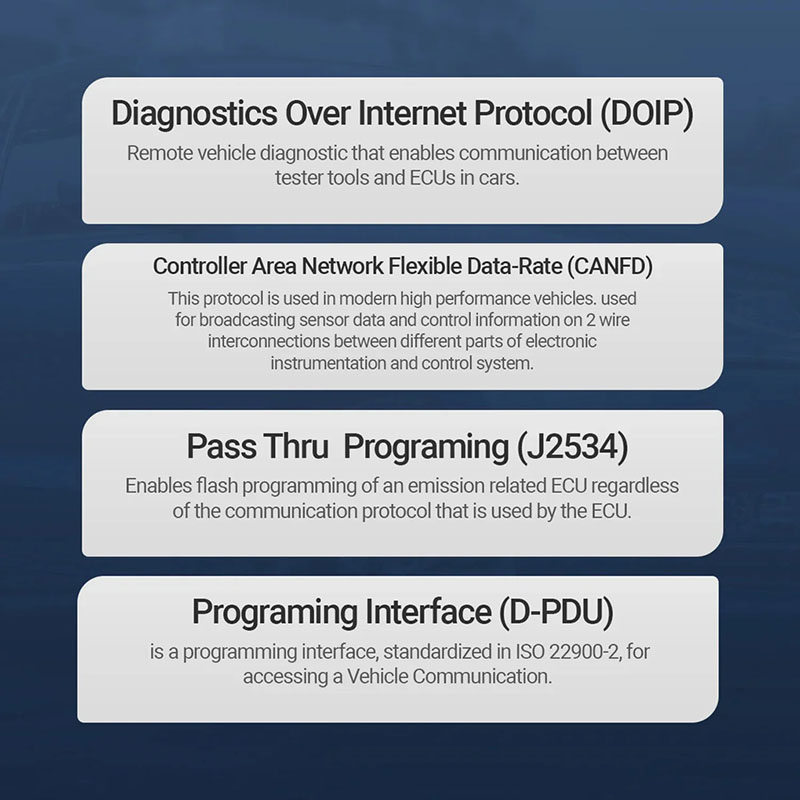

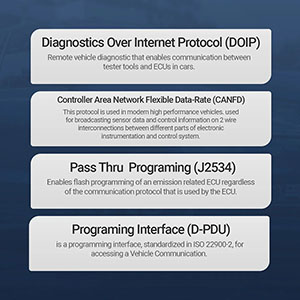

- Wide Compatibility Equipped with J2534 and CAN FD capabilities
Specifications

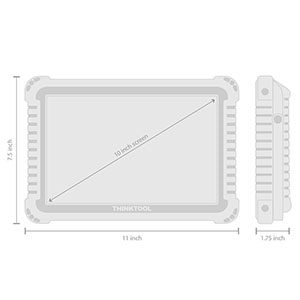

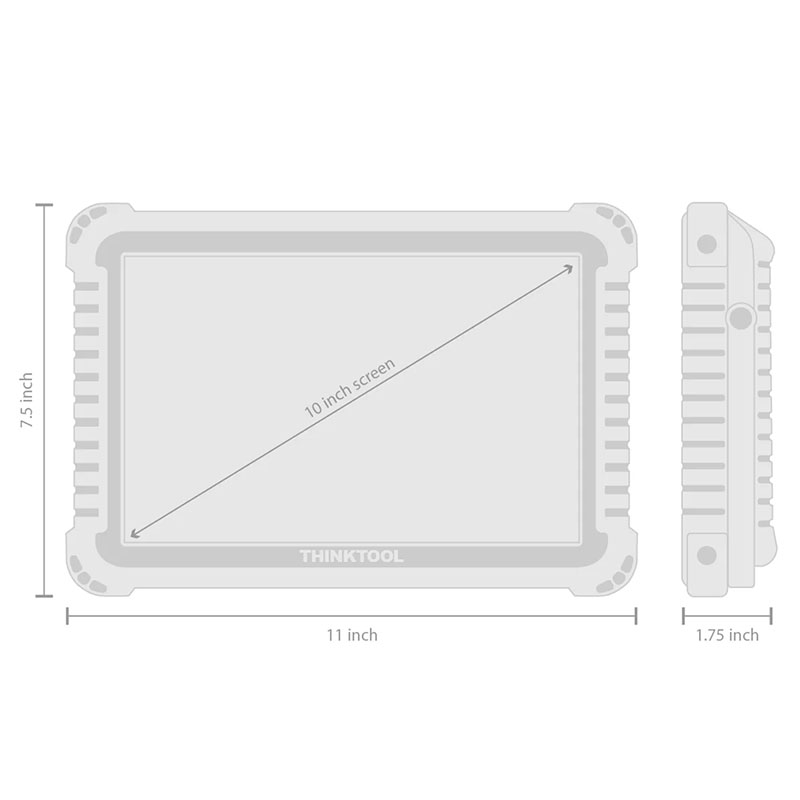

Display: 10" Touchscreen Display
Coverage: Optional heavy duty vehicle coverage, TPMS functionality, and ADAS calibration to provide additional functions
Product Type: OBD2 Scanner, Car Code Fault Code Reader, Vehicle Diagnostic Tool, Professional Automotive Diagnostic Scanner
Operating System: Android 10.0
Memory: 4GB
Internal Storage: 64GB
Processor: 2.0GHz, Quad-Core
Camera: 8 Megapixel Rear Camera
Battery: 6,000mAh/7.6V, 10 hours continuous operation
Connection mode: BT5.0/Wi-Fi (WLAN 802.11b/g/n)
WiFi: Dual Bands 2.4 GHZ & 5GHZ
Color: Black
Maintenance Functions
Built in System Scan
- AC System Relearn
- Clutch Matching
- ECU Reset & Relearn
- Engine Power Balance
- FRM Matching
- DPF Regeneration Gateway Module High Voltage Battery
- IMMO Programming
- ICC Calibration
- Motor Angle Calibration
- Rainfall Light Sensor
- Turbo Chargin System

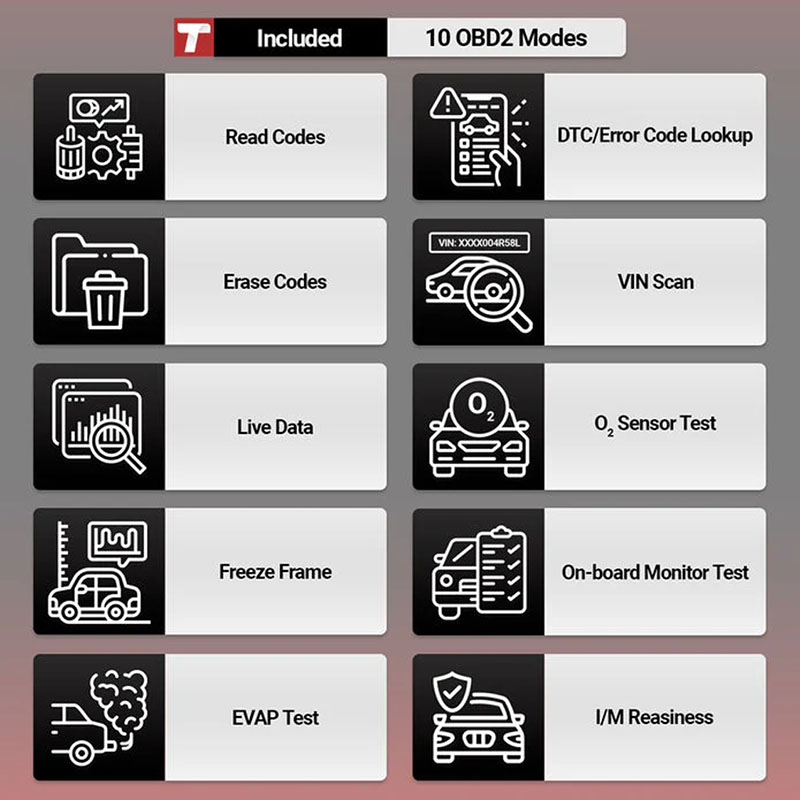

Included Standard Resets
Mode 01 - Request Current Powertrain Diagnostic Data: Retrieves real-time data from the vehicle's engine and emission systems, such as engine RPM, vehicle speed, fuel trim, and more.
Mode 02 - Request Freeze Frame Data: Retrieves a snapshot of the vehicle's data at the time when a Diagnostic Trouble Code (DTC) was triggered, providing a valuable reference for diagnosis.
Mode 03 - Request Stored Diagnostic Trouble Codes: Retrieves the DTCs stored in the vehicle's computer memory, indicating specific issues or faults that have been detected.
Mode 04 - Clear/Reset Diagnostic Trouble Codes: Clears or resets the stored DTCs and turns off the Check Engine Light (MIL) after the related issues have been resolved.
Mode 05 - Request Oxygen Sensor Monitoring Tests: Monitors the operation and performance of the oxygen sensors in the vehicle's exhaust system, providing data on fuel mixture and emissions.
Mode 06 - Request On-Board Monitoring Tests Results: Provides access to the results of various self-tests conducted by the vehicle's onboard systems, including catalyst efficiency, evaporative system, and more.
Mode 07 - Request Pending Diagnostic Trouble Codes: Retrieves the DTCs that are pending and have not yet triggered the Check Engine Light, indicating potential issues that require attention.
Mode 08 - Request Control of On-Board Systems: Allows control and testing of certain vehicle systems or components, such as turning on/off specific actuators or performing system self-tests.
Mode 09 - Request Vehicle Information: Retrieves information about the vehicle's identification, calibration, and programming, including VIN (Vehicle Identification Number), ECU software version, and more.
Mode 10 - Request Permanent Diagnostic Trouble Codes: Retrieves any permanent DTCs that cannot be cleared by the vehicle's computer, indicating persistent issues that require further attention.
35 Available Maintenance Functions
- Air-to-Fuel Ratio Reset
- AdBlue Reset
- AFS Reset
- Airbag Reset
- ABS Bleeding Reset
- Battery Match
- Brake Reset
- Coolant Bleed Reset
- DPF Regeneration
- EGR Adaptation
- Elec Throttle Relearn
- Gear relearn Reset
- Gear Box Relearn
- immobilizer Reset
- Injector Reset
- NOX Sensor Reset
- Odometer
- Oil Reset
- SAS Reset
- Seat Calibration
- Stop & Start Reset
- Sunroof Reset
- Suspension Reset
- TPMS Resets
- Tire Refitting Reset
- Window Calibration
- Transport Mode
- Language Change and More
Software
- 2 Year of Passenger Sotware Included
- Optional Heavy Duty Commercial Vehicle Software with Subscription Purchase
Warranty: 1 Year Limited
Keep your vehicle running at its best with the THINKCAR Platinum S10 CAN FD, the all-in-one diagnostic scanner designed to monitor, diagnose, and enhance vehicle performance with real-time data and advanced diagnostic functions.
Monitor Performance & Health in Real Time
Track your vehicle’s fuel efficiency, emissions, and other key performance indicators with real-time data streaming. This allows you to spot potential issues early and address them before they turn into costly repairs.
Quick & Easy Troubleshooting
From engine and transmission issues to electrical system faults, the Platinum S10 CAN FD helps you quickly identify and resolve problems, ensuring faster repairs and accurate diagnostics every time.
Enhanced Compatibility with Faster Data Transmission
Equipped with the latest CAN FD protocol, this scanner offers faster data transfer speeds compared to older CAN systems. This means quicker access to diagnostic information and faster issue detection, boosting efficiency for both professional mechanics and advanced DIYers.
Advanced ADAS Calibration
Stay ahead of safety system repairs with built-in ADAS calibration support. Proper calibration of critical safety features like lane departure warning, adaptive cruise control, and automatic emergency braking helps ensure these systems operate correctly — keeping vehicles safer on the road.
Built for Professional Shops
As a mechanic shop essential, the Platinum S10 CAN FD streamlines diagnostics, reducing time spent troubleshooting so you can focus more on repairs. This increased efficiency lets your shop take on more jobs and increase revenue without compromising quality.
Easy-to-Navigate Interface
Designed to keep up with evolving vehicle technology, the scanner’s user-friendly screen and intuitive layout make it simple to access advanced features. By investing in the THINKCAR Platinum S10 CAN FD, your shop stays prepared for future diagnostic challenges, ensuring you continue to deliver top-quality service for every customer.
