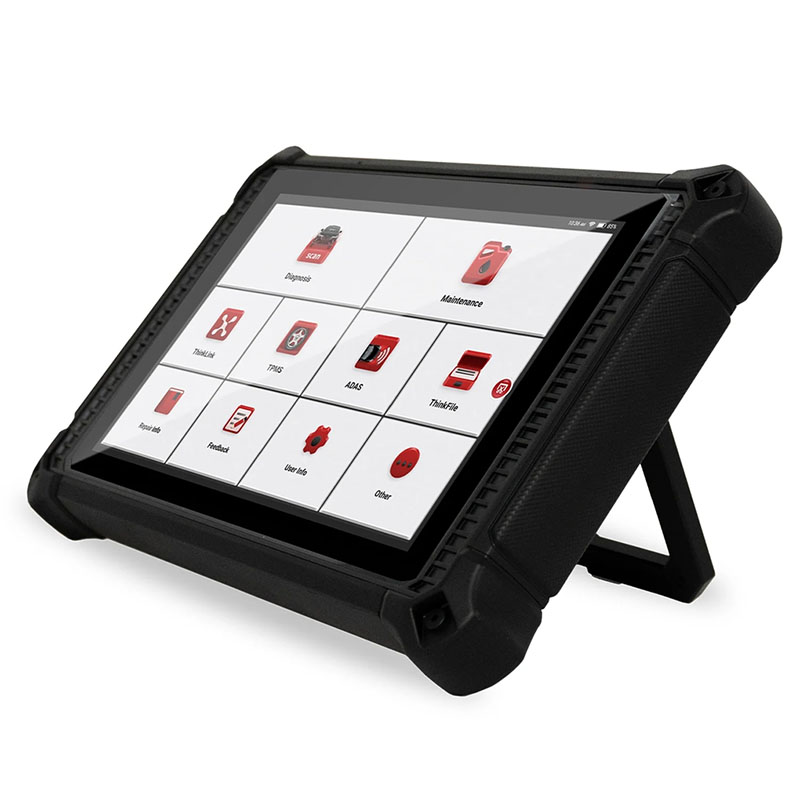

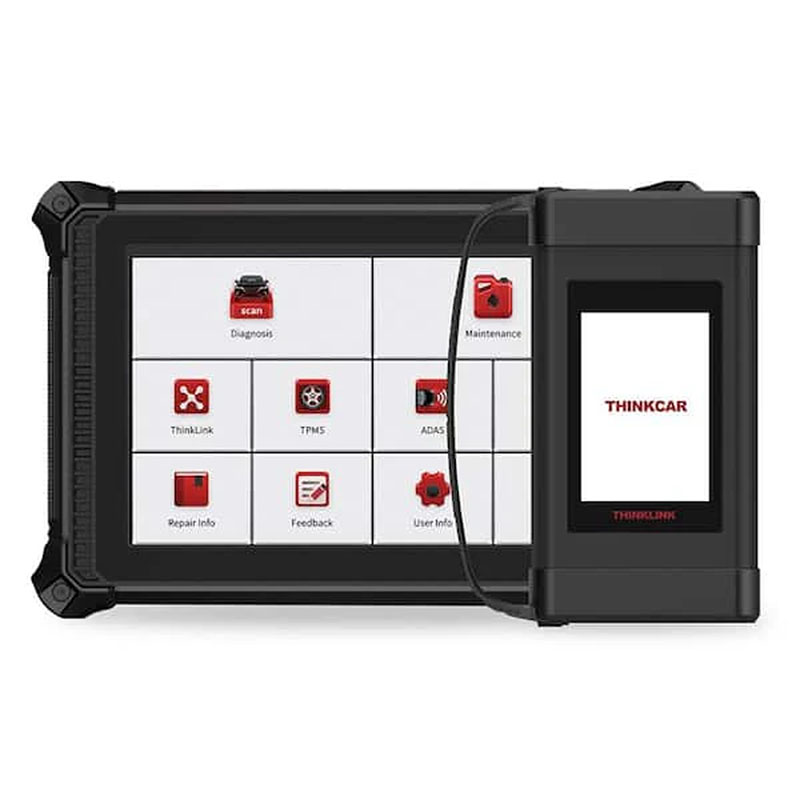

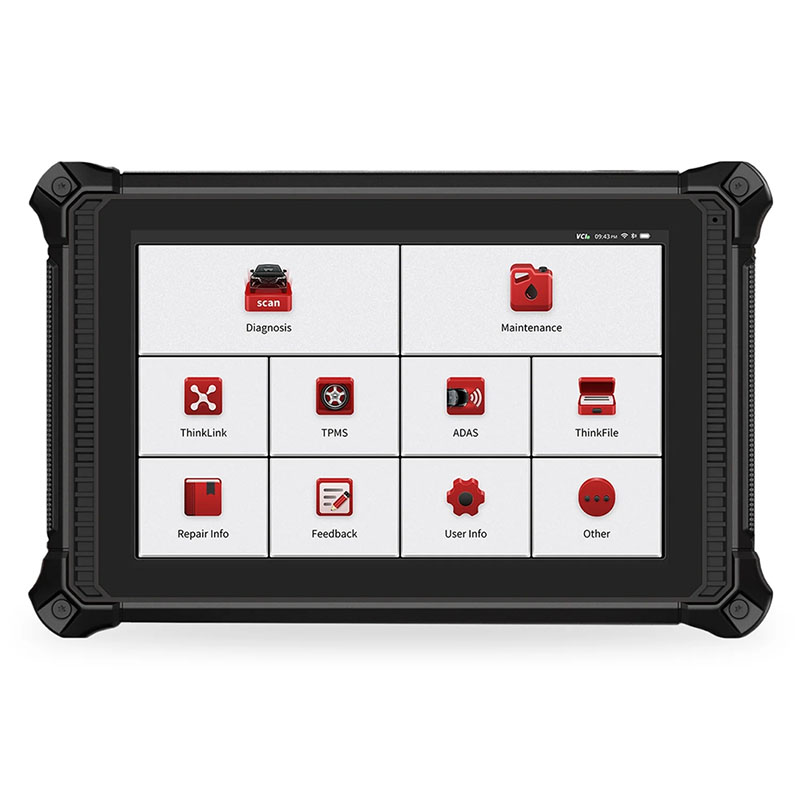

The THINKCAR Platinum 393 is a professional-grade 10-inch full-system diagnostic scanner, engineered to meet the demands of advanced automotive diagnostics and repair. Designed specifically for professional mechanics, this all-in-one device delivers comprehensive diagnostic capabilities with the speed, storage, and versatility modern shops need to stay efficient.
Powered by 4GB of RAM and 128GB of storage, the Platinum 393 handles full-system diagnostics across a wide range of vehicle makes and models, ensuring faster processing and seamless performance even during complex scans. With 41 essential maintenance reset functions, mechanics can perform critical service tasks like oil resets, brake bleeding, injector coding, battery resets, and more — all from a single device.
This scanner is equipped with WiFi, Bluetooth, and wired diagnostic options, offering flexible connectivity for different diagnostic environments. It also supports video remote diagnosis, allowing technicians to collaborate in real time for faster problem-solving.
Advanced features like online programming, ADAS calibration, and comprehensive system coding further extend the tool’s capabilities, making it ideal for high-level diagnostics and repairs. Plus, its high-capacity 12,600mAh battery ensures you have the power to work all day without interruptions.
With its full-system coverage, advanced reset functions, and professional programming features, the THINKCAR Platinum 393 is the ultimate tool for boosting shop productivity, reducing diagnostic time, and ensuring accurate, efficient repairs.
Quick Start Guide
Features
- 10" Inch Large Touchscreen
- 41 Maintenance Functions
- ADAS Calibration
- Bi-directional Communication for Actuation Testing

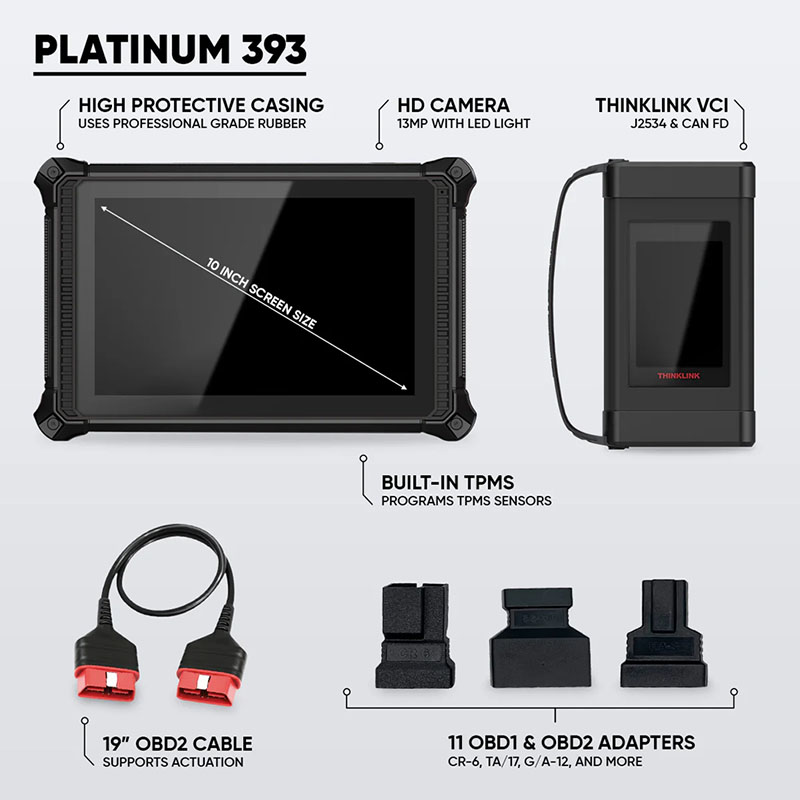

- Comes with 11 OBD1 and OBD2 adapters, catering to different vehicle types.
- Dealer & OEM Level Diagnostics
- Dual USB ports (USB C and USB A) for connecting to various devices and accessories.
- Full Diagnostics, Supports 12V & 24V Passenger Cars, Commercial Cars, Hybrid, and Heavy-Duty
- High-Quality Imaging: Includes a 13 MP HD camera with LED light
- Online Programing
- Reading and Clearing Fault Codes
- Live Data Stream
- TPMS & ADAS Calibration Support
- Provides Coverage on 98% of Domestic Vehicles
- Wide Compatibility Equipped with J2534, DoIP and CAN FD capabilities
Specifications

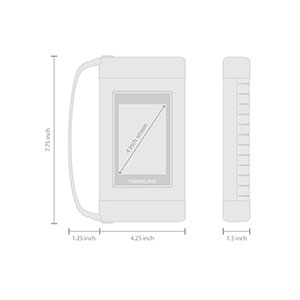

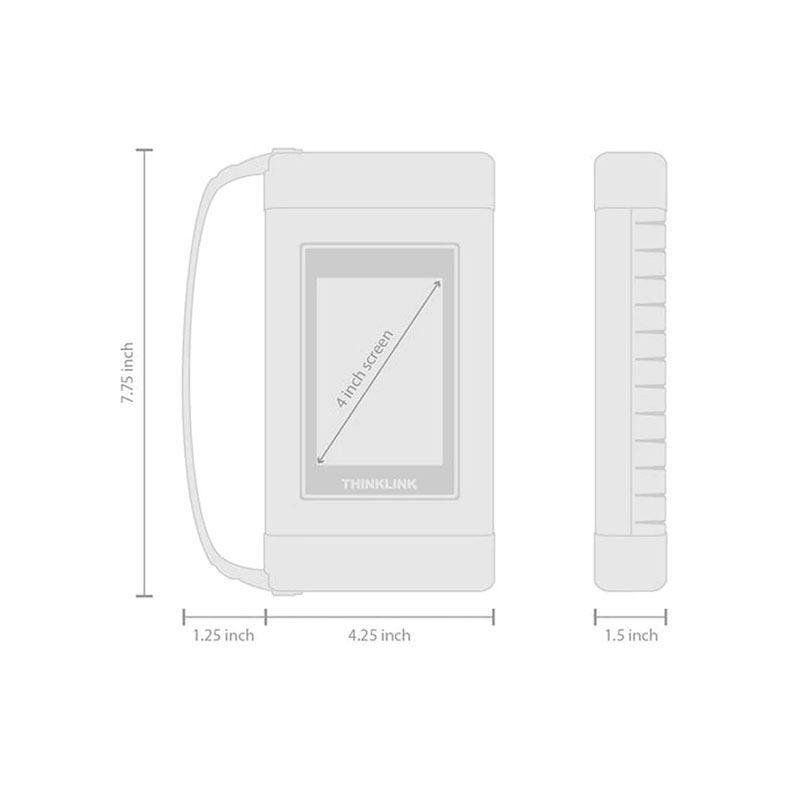

- Bluetooth VCI: THINKLINK
- Product Dimensions: 302*199*36.5mm
- Display 10.1 inches
- Resolution: 1280*800
- RAM 4G / 128G Stroage
- System: Android 10
- Diagnostic Mode: WiFi/Bluetooth/Wired
- Battery (mAh) 3.8V/12600
- Rear Camera: 13 Million
- Microphones: Yes
- LED Lights: Yes
- Tire Pressure Antenna: Yes
- External interface: Type-C Port
Maintenance Functions
Built in System Scan
- AC System Relearn
- Clutch Matching
- ECU Reset & Relearn
- Engine Power Balance
- FRM Matching
- DPF Regeneration Gateway Module High Voltage Battery
- IMMO Programming
- ICC Calibration
- Motor Angle Calibration
- Rainfall Light Sensor
- Turbo Chargin System
- Included Standard Resets
Mode 01 - Request Current Powertrain Diagnostic Data: Retrieves real-time data from the vehicle's engine and emission systems, such as engine RPM, vehicle speed, fuel trim, and more.
Mode 02 - Request Freeze Frame Data: Retrieves a snapshot of the vehicle's data at the time when a Diagnostic Trouble Code (DTC) was triggered, providing a valuable reference for diagnosis.
Mode 03 - Request Stored Diagnostic Trouble Codes: Retrieves the DTCs stored in the vehicle's computer memory, indicating specific issues or faults that have been detected.
Mode 04 - Clear/Reset Diagnostic Trouble Codes: Clears or resets the stored DTCs and turns off the Check Engine Light (MIL) after the related issues have been resolved.
Mode 05 - Request Oxygen Sensor Monitoring Tests: Monitors the operation and performance of the oxygen sensors in the vehicle's exhaust system, providing data on fuel mixture and emissions.
Mode 06 - Request On-Board Monitoring Tests Results: Provides access to the results of various self-tests conducted by the vehicle's onboard systems, including catalyst efficiency, evaporative system, and more.
Mode 07 - Request Pending Diagnostic Trouble Codes: Retrieves the DTCs that are pending and have not yet triggered the Check Engine Light, indicating potential issues that require attention.
Mode 08 - Request Control of On-Board Systems: Allows control and testing of certain vehicle systems or components, such as turning on/off specific actuators or performing system self-tests.
Mode 09 - Request Vehicle Information: Retrieves information about the vehicle's identification, calibration, and programming, including VIN (Vehicle Identification Number), ECU software version, and more.
Mode 10 - Request Permanent Diagnostic Trouble Codes: Retrieves any permanent DTCs that cannot be cleared by the vehicle's computer, indicating persistent issues that require further attention.

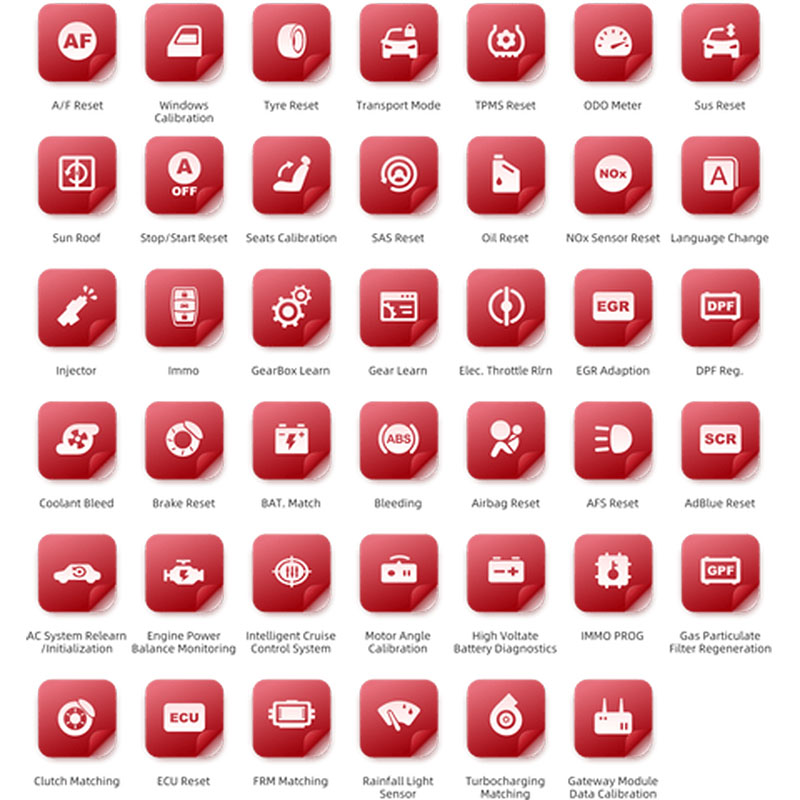

41 Available Maintenance Functions
- Air-to-Fuel Ratio Reset
- AdBlue Reset
- AFS Reset
- Airbag Reset
- ABS Bleeding Reset
- Battery Match
- Brake Reset
- Coolant Bleed Reset
- DPF Regeneration
- EGR Adaptation
- Elec Throttle Relearn
- Gear relearn Reset
- Gear Box Relearn
- immobilizer Reset
- Injector Reset
- NOX Sensor Reset
- Odometer
- Oil Reset
- SAS Reset
- Seat Calibration
- Stop & Start Reset
- Sunroof Reset
- Suspension Reset
- TPMS Resets
- Tire Refitting Reset
- Window Calibration
- Transport Mode
- Language Change
- + More
Software
2 Years of Passenger Vehicle Coverage
Optional Heavy-Duty Vehicle Subscription
Warranty: 1 Year Limited
The THINKCAR Platinum 393 delivers OE-level diagnostic performance in a rugged, professional 10.1-inch touchscreen tablet, powered by Android and equipped with a generous 128GB of storage and the advanced THINKLINK VCI. Designed to meet the needs of modern repair shops, the Platinum 393 supports the latest communication protocols, including J2534, DoIP, and CAN FD, ensuring compatibility with the newest vehicle technologies.
Comprehensive Diagnostic Suite with Video Remote Technology
This scanner goes beyond standard diagnostics by incorporating THINKCAR’s innovative video remote diagnostic technology, allowing technicians to collaborate remotely for faster, more accurate problem-solving.
Built-In TPMS Module
The Platinum 393 also features a dedicated TPMS module, enabling activation, programming, and relearning of TPMS sensors — streamlining tire service and ensuring complete system functionality.
41 Essential Maintenance Resets
With 41 built-in reset functions, this all-in-one scanner covers key service tasks like oil and brake resets, injector coding, battery matching, and more, allowing you to maintain peak vehicle performance with ease.
Faster Data, Faster Diagnostics
Support for J2534, DoIP, and CAN FD protocols means faster data transfer speeds and quicker diagnostic data retrieval, so you can identify and resolve issues faster than ever before.
Advanced ADAS Calibration
For vehicles equipped with Advanced Driver Assistance Systems (ADAS), the Platinum 393 supports precise ADAS calibration, helping you properly service safety features like lane departure warnings, adaptive cruise control, and automatic emergency braking — ensuring on-road safety for your customers.
Built for Professional Shops
Engineered to reduce diagnostic time and increase shop productivity, the Platinum 393 helps you diagnose faster, freeing up valuable time for repairs. This allows your shop to take on more jobs without compromising accuracy or quality — a smart investment for boosting revenue and customer satisfaction.
With its comprehensive functionality, advanced communication protocols, and professional-grade design, the THINKCAR Platinum 393 is the ultimate shop scanner for modern mechanics who demand speed, accuracy, and versatility in every diagnosis.
