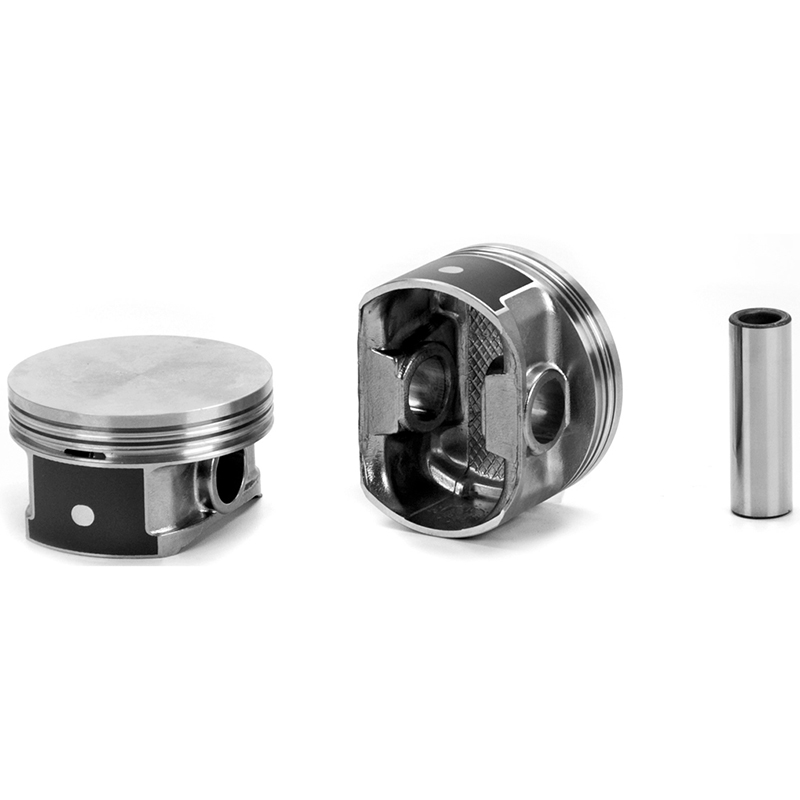

Silvolite Piston Set, 3498HC.12MM
$194.99
MSRP: $216.36
You Save: $21.37 (10 %)
Ships directly from manufacturer.
Piston rings not included
Part Number: 802616
Brand: UEM Pistons
Manufacturer Part No: 3498HC.12MM
Superior Quality Parts: Heavy Duty Pros parts meet and exceed the OEM quality specifications.
Fast Shipping: We ship from warehouses across the US to ensure the quickest delivery.
Expert Technical Advice: Industry repair technicians are standing by to provide expert advice for your repair.
Huge Savings: We offer competitive online pricing for significant savings.
|
Product Details & Specifications
Silv-O-Lite Piston - GM 346ci/5.7L (V8)
Hypereutectic. LS1 engine. Flat top. Coated skirts.
Sold As: Sold as a set, priced per set
Engine Manufacturer: GM
Engine Family: Chevy Small Block Gen III/IV (LS-Based Engines)
VIN Code: G, S
OE Cross Reference: 88984245
Engine Displacement (Liters): 5.7
Engine Displacement (cubic inches): 346
Piston Head Type: Flat
Compression Ratio: 10
Top Land: 0.2
Pin Type: Press
Piston Pin Outside Diameter IN: 0.945
Bore Diameter MM: 99
Oil Ring Thickness MM: 3
Top Compression Ring Thickness MM: 1.5
Piston Pin Outside Diameter MM: 24
Compression Height IN: 1.33
Second Compression Ring Thickness MM: 1.5
Bore Diameter IN: 3.8976
Piston Material: Cast 390 Hypereutectic Alloy
Compression Height MM: 33.8
Year Range: 1997-2004
Crown Type: FLAT TOP
Pin Configuration: Offset
Ring Pack: 1.5mm, 1.5mm, 3.0mm Shallow Oil Groove
Year From: 1997
Oversized: Yes
Oversize: .12mm
Pin Number: 0944x223A
Oversizes: STD.25mm.5mm.75mm 1.0mm
Base Number: 3498HC
Year To: 2004
|
|
|
