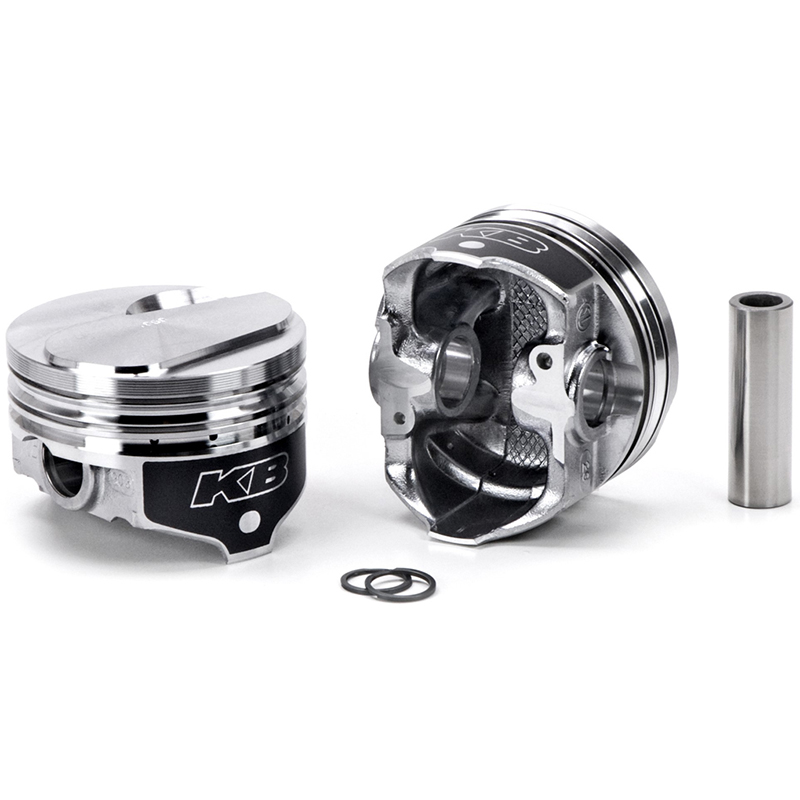

KB Hyper Performance Piston Set, KB203.STD
$395.99
MSRP: $439.44
You Save: $43.45 (10 %)
Ships directly from manufacturer.
Piston rings not included
Part Number: 807149
Brand: UEM Pistons
Manufacturer Part No: KB203.STD
Superior Quality Parts: Heavy Duty Pros parts meet and exceed the OEM quality specifications.
Fast Shipping: We ship from warehouses across the US to ensure the quickest delivery.
Expert Technical Advice: Industry repair technicians are standing by to provide expert advice for your repair.
Huge Savings: We offer competitive online pricing for significant savings.
|
Product Details & Specifications
KB Hyper Piston - Chevy 454, Rod 6.135, CC Solid Dome -12cc 1V
Centered pin. CC=closed chamber head.
Sold As: Piston Set
Engine Manufacturer: Chevrolet
Engine Family: Chevrolet BB V8 Mark IV
Engine Displacement (Liters): 7.4
Engine Displacement (cubic inches): 454
Bore Size (in): 4.25
Bore Size (mm): 108
Piston Head Type: Dome
Crown (cc): -12cc
Compression Ratio: 96.5-11.0, 105-10.2, 108-9.9, 119-9.1
Top Land: 0.319
Pin Type: Press or Floating
Oversize: STD
Bore Diameter IN: 4.25
Make for Engine Family: General Motors
Pin Diameter (mm): 25.1
Lock: PRG110-3
Alloy: 390
Ring Pack: 5/64, 5/64, 3/16
Year To: 2000
Compression Height MM: 41.7
Bore Diameter MM: 108
Compression Height IN: 1.645
Crown Type: .113" CC SOLID DOME 1V
Pin Configuration: Centered
Stroke (mm): 101.6
Pin Number: 0990x300K
Oversizes: STD, .030, .040, .060, .070, .100
Stroke (in): 4
Pin Diameter (in): 0.99
Intake Valve Depth/Diameter: .266/2.310
Rod (mm): 155.829
Year From: 1970
Rod (in): 6.135
OE Deck Height: 9.8
Piston Material: Cast 390 Hypereutectic Alloy
Oversized: No
Base Number: KB203
Year Range: 1970-2000
|
|
|
