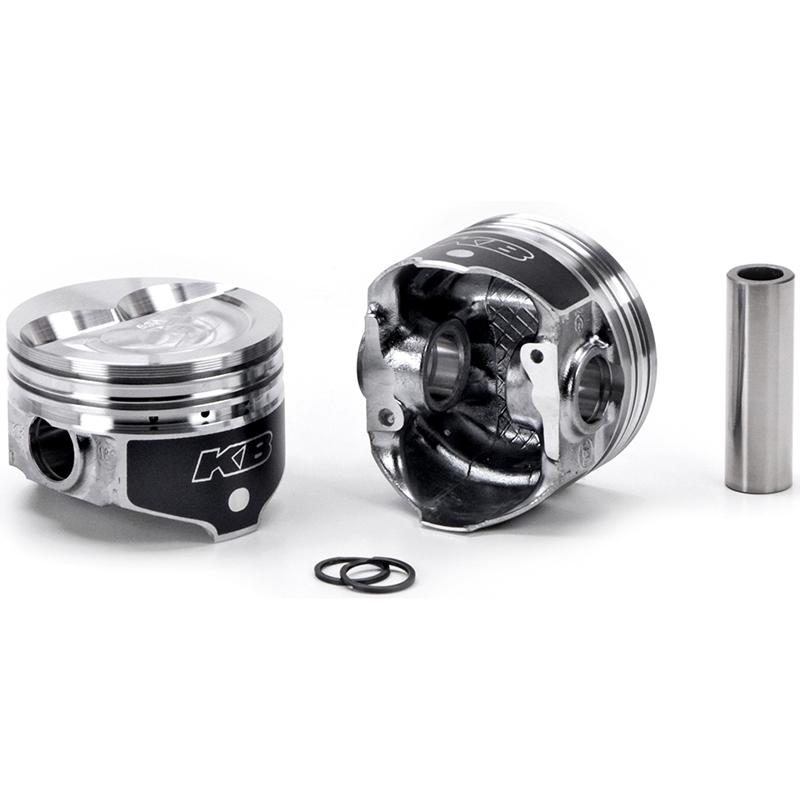

KB Hyper Performance Piston Set, KB186.STD
$380.99
MSRP: $423.24
You Save: $42.25 (10 %)
Ships directly from manufacturer.
Piston rings not included
Part Number: 807000
Brand: UEM Pistons
Manufacturer Part No: KB186.STD
Superior Quality Parts: Heavy Duty Pros parts meet and exceed the OEM quality specifications.
Fast Shipping: We ship from warehouses across the US to ensure the quickest delivery.
Expert Technical Advice: Industry repair technicians are standing by to provide expert advice for your repair.
Huge Savings: We offer competitive online pricing for significant savings.
|
Product Details & Specifications
KB Hyper Piston - Chevy 334 Rod 5.700, D-Cup +10cc 2V
Centered pin. Spacer ring included. Made with Chevy 305 SB.
Sold As: Piston Set
Engine Manufacturer: Chevrolet
Engine Family: Chevrolet SB V8 Gen I
Engine Displacement (Liters): 5.5
Engine Displacement (cubic inches): 334
Bore Size (in): 3.736
Bore Size (mm): 94.9
Piston Head Type: Dish
Crown (cc): +10cc
Compression Ratio: 55-10.5, 58-10.1, 64-9.4, 76-8.3
Top Land: 0.207
Pin Type: Press or Floating
Oversize: STD
Compression Height MM: 36.4
Lock: PRJ100-3
Alloy: 390
OE Deck Height: 9.025
Intake Valve Depth/Diameter: .280/2.168
Bore Diameter IN: 3.736
Bore Diameter MM: 94.9
Compression Height IN: 1.433
Oversizes: STD, .020, .030, .040, .060
Piston Material: Cast 390 Hypereutectic Alloy
Rod (mm): 144.78
Pin Number: 0927X300K
Stroke (in): 3.75
Year Range: -
Rod (in): 5.7
Pin Diameter (mm): 23.5
Pin Diameter (in): 0.927
Make for Engine Family: General Motors
Crown Type: D-CUP 2V
Base Number: KB186
Exhaust Valve Depth/Diameter: .280/2.168
Ring Pack: 5/64, 5/64, 3/16
Oversized: No
Pin Configuration: Centered
Stroke (mm): 95.3
|
|
|
