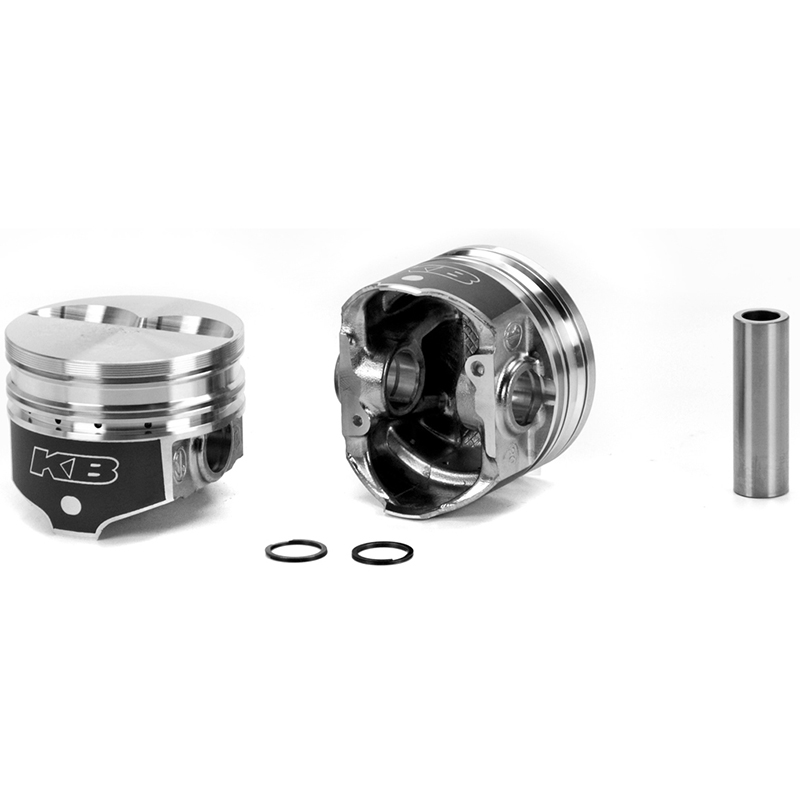

KB Hyper Performance Piston Set, KB165.040
$357.99
MSRP: $396.72
You Save: $38.73 (10 %)
Ships directly from manufacturer.
Piston rings not included
Part Number: 806821
Brand: UEM Pistons
Manufacturer Part No: KB165.040
Superior Quality Parts: Heavy Duty Pros parts meet and exceed the OEM quality specifications.
Fast Shipping: We ship from warehouses across the US to ensure the quickest delivery.
Expert Technical Advice: Industry repair technicians are standing by to provide expert advice for your repair.
Huge Savings: We offer competitive online pricing for significant savings.
|
Product Details & Specifications
KB Hyper Piston - Chevy 283 Rod 5.700 Flat Top +6cc 2V
Centered pin.
Sold As: Piston Set
Engine Manufacturer: Chevrolet
Engine Family: Chevrolet SB V8 Gen I
Engine Displacement (Liters): 4.6
Engine Displacement (cubic inches): 283
Bore Size (in): 3.875
Bore Size (mm): 98.4
Piston Head Type: Flat
Crown (cc): +6cc
Compression Ratio: 55-9.6, 58-9.2, 62-8.8, 64-8.6
Top Land: 0.275
Pin Type: Press or Floating
Base Number: KB165
Bore Diameter MM: 98.4
Compression Height MM: 45.8
Bore Diameter IN: 3.875
Compression Height IN: 1.805
Rod (in): 5.7
Make for Engine Family: General Motors
Stroke (in): 3
Pin Configuration: Centered
Rod (mm): 144.78
Exhaust Valve Depth/Diameter: .280/2.168
Oversized: Yes
Alloy: 390
Ring Pack: 5/64, 5/64, 3/16
Intake Valve Depth/Diameter: .280/2.168
Year To: 1967
Pin Number: 0927X300K
Oversizes: .030, .040, .060
Stroke (mm): 76.2
OE Deck Height: 9.025
Piston Material: Cast 390 Hypereutectic Alloy
Oversize: .040"
Lock: PRJ100-3
Pin Diameter (mm): 23.5
Year From: 1957
Pin Diameter (in): 0.927
Crown Type: FLAT TOP 2V
Year Range: 1957-1967
|
|
|
