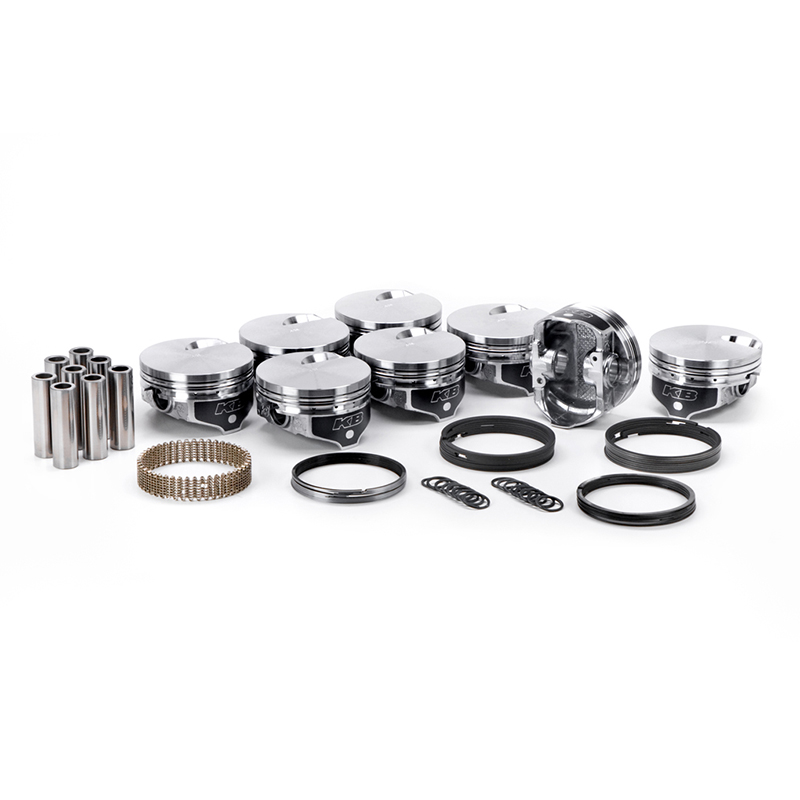

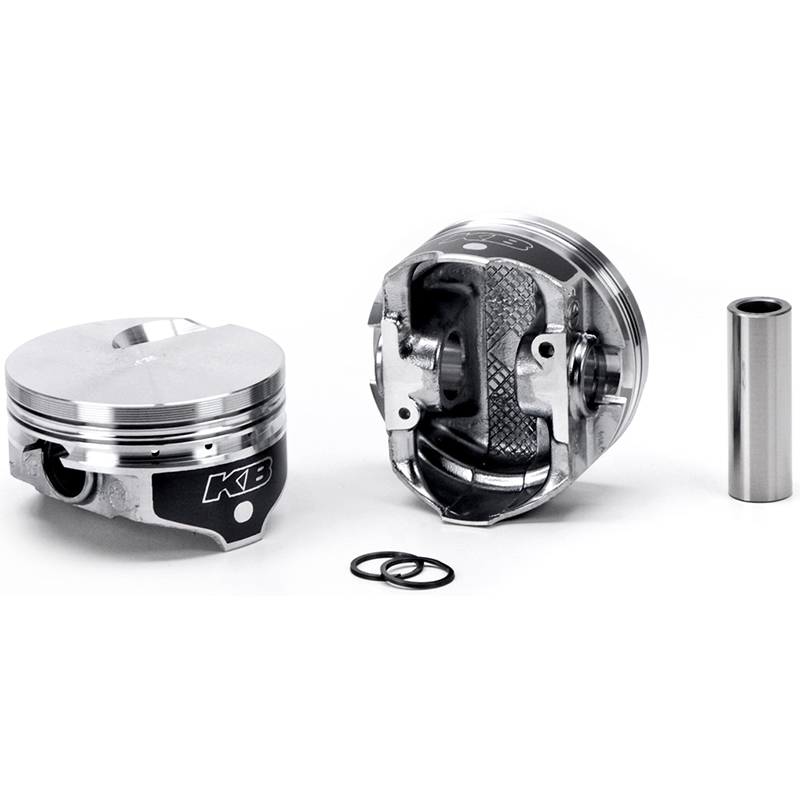

KB Hyper Performance Piston Kit, KB284KTD.STD
$514.99
MSRP: $571.20
You Save: $56.21 (10 %)
Ships directly from manufacturer.
Part Number: 807601
Brand: UEM Pistons
Manufacturer Part No: KB284KTD.STD
Superior Quality Parts: Heavy Duty Pros parts meet and exceed the OEM quality specifications.
Fast Shipping: We ship from warehouses across the US to ensure the quickest delivery.
Expert Technical Advice: Industry repair technicians are standing by to provide expert advice for your repair.
Huge Savings: We offer competitive online pricing for significant savings.
|
Product Details & Specifications
1 Set KB284.STD/1 Set 4250BD8.005
Centered pin. Spacer ring included. Made from Chevy 454 BB.
Sold As: Kit with Rings
Engine Manufacturer: Chevrolet
Engine Family: Chevrolet BB V8 Mark IV
Engine Displacement (Liters): 8
Engine Displacement (cubic inches): 489
Bore Size (in): 4.25
Bore Size (mm): 108
Crown (cc): +3cc
Compression Ratio: 96.5-10.0, 105-9.5, 108-9.3, 119-8.6
Top Land: 0.312
Pin Type: Press or Floating
Grade Type: Performance
Oversizes: STD, .030, .040, .060, .070, .100
Compression Height MM: 32.3
Compression Height IN: 1.27
Pin Number: 0990x300K
Stroke (mm): 108
Bore Diameter MM: 108
Alloy: 390
Bore Diameter IN: 4.25
Rod (in): 6.385
Lock: PRG110-3
Make for Engine Family: General Motors
Oversized: No
Crown Type: FLAT TOP 1V
Rod (mm): 162.179
Piston Material: Cast 390 Hypereutectic Alloy
Pin Configuration: Centered
Base Number: KB284
Pin Diameter (in): 0.99
Pin Diameter (mm): 25.1
Oversize: STD
Year Range: -
OE Deck Height: 9.8
Stroke (in): 4.25
Intake Valve Depth/Diameter: .266/2.310
Ring Pack: 1/16, 1/16, 3/16
|
|
|
