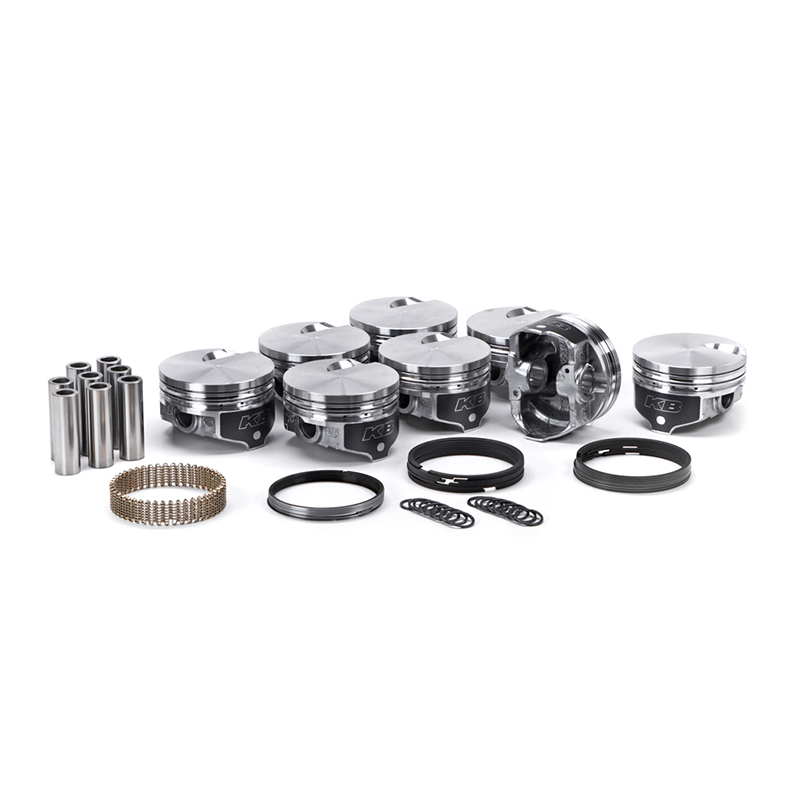

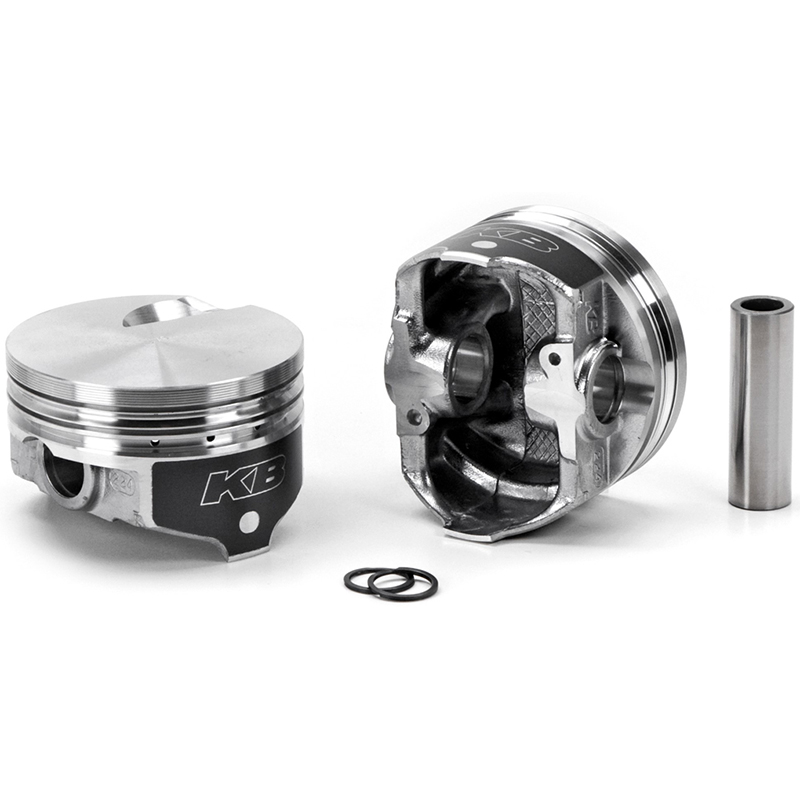

KB Hyper Performance Piston Kit, KB224KTD.STD
$485.99
MSRP: $539.06
You Save: $53.07 (10 %)
Ships directly from manufacturer.
Part Number: 807284
Brand: UEM Pistons
Manufacturer Part No: KB224KTD.STD
Superior Quality Parts: Heavy Duty Pros parts meet and exceed the OEM quality specifications.
Fast Shipping: We ship from warehouses across the US to ensure the quickest delivery.
Expert Technical Advice: Industry repair technicians are standing by to provide expert advice for your repair.
Huge Savings: We offer competitive online pricing for significant savings.
|
Product Details & Specifications
1 Set KB224.STD/ 1 Set 4250BD8.005
Centered pin. Made from Chevy 454 BB tall block.
Sold As: Kit with Rings
Engine Manufacturer: Chevrolet
Engine Family: Chevrolet BB V8 Mark IV
Engine Displacement (Liters): 8
Engine Displacement (cubic inches): 489
Bore Size (in): 4.25
Bore Size (mm): 108
Crown (cc): +3cc
Compression Ratio: 96.5-10.2, 105-9.5, 108-9.3, 119-8.6
Top Land: 0.308
Pin Type: Press or Floating
Base Number: KB224
Bore Diameter IN: 4.25
OE Deck Height: 9.8
Rod (mm): 155.829
Pin Number: 0990x300K
Ring Pack: 1/16, 1/16, 3/16
Year Range: -
Intake Valve Depth/Diameter: .266/2.310
Bore Diameter MM: 108
Compression Height MM: 38.6
Compression Height IN: 1.52
Piston Material: Cast 390 Hypereutectic Alloy
Pin Diameter (mm): 25.1
Stroke (mm): 108
Oversize: STD
Oversizes: STD, .030, .040, .060, .070, .100
Crown Type: FLAT TOP 1V
Alloy: 390
Make for Engine Family: General Motors
Stroke (in): 4.25
Pin Configuration: Centered
Pin Diameter (in): 0.99
Grade Type: Performance
Oversized: No
Rod (in): 6.135
Lock: PRG110-3
|
|
|
