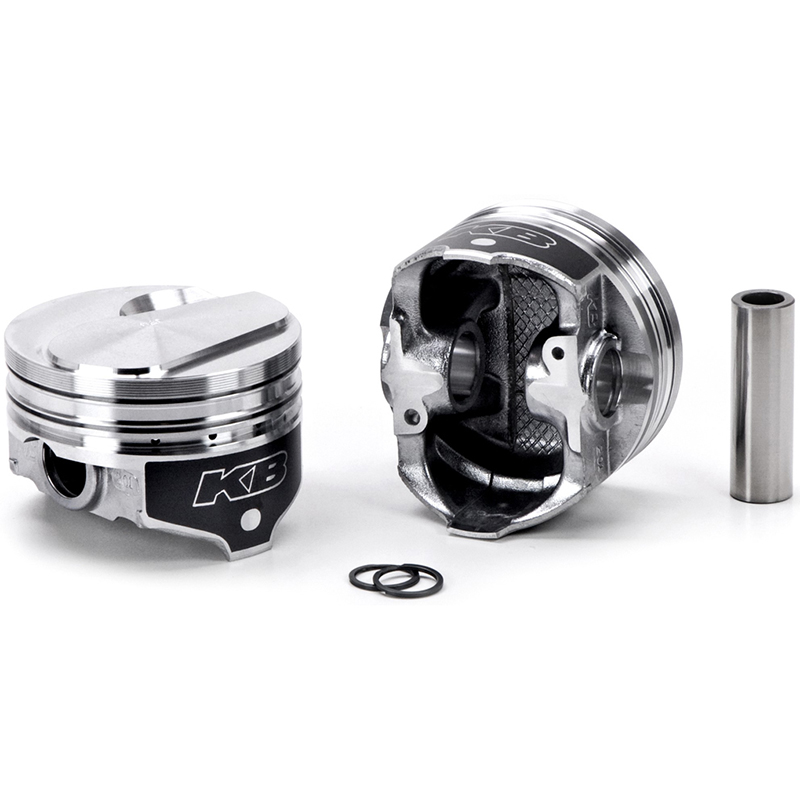

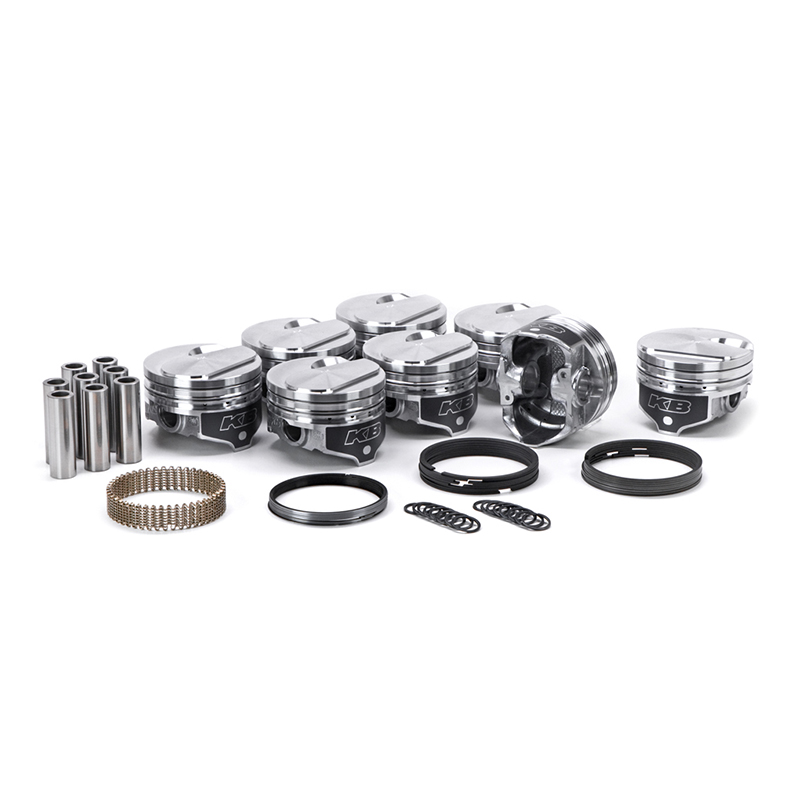

KB Hyper Performance Piston Kit, KB201KTD.STD
$523.99
MSRP: $581.24
You Save: $57.25 (10 %)
Ships directly from manufacturer.
Part Number: 807131
Brand: UEM Pistons
Manufacturer Part No: KB201KTD.STD
Superior Quality Parts: Heavy Duty Pros parts meet and exceed the OEM quality specifications.
Fast Shipping: We ship from warehouses across the US to ensure the quickest delivery.
Expert Technical Advice: Industry repair technicians are standing by to provide expert advice for your repair.
Huge Savings: We offer competitive online pricing for significant savings.
|
Product Details & Specifications
1 Set KB201.STD/1 Set 4250BD8.005
Centered pin. CC=closed chamber head.
Sold As: Kit with Rings
Engine Manufacturer: Chevrolet
Engine Family: Chevrolet BB V8 Mark IV
Engine Displacement (Liters): 7.4
Engine Displacement (cubic inches): 454
Bore Size (in): 4.25
Bore Size (mm): 108
Piston Head Type: Dome
Crown (cc): -12cc
Compression Ratio: 96.5-11.0, 105-10.2, 108-9.9, 119-9.1
Top Land: 0.311
Pin Type: Press or Floating
Lock: PRG110-3
Oversizes: STD, .030, .040, .060, .070, .100
Crown Type: .113" CC SOLID DOME 1V
Oversize: STD
Piston Material: Cast 390 Hypereutectic Alloy
Make for Engine Family: General Motors
Compression Height MM: 41.7
Compression Height IN: 1.645
Bore Diameter IN: 4.25
Base Number: KB201
Grade Type: Performance
Bore Diameter MM: 108
Pin Diameter (in): 0.99
Oversized: No
Rod (mm): 155.829
Pin Number: 0990x300K
OE Deck Height: 9.8
Intake Valve Depth/Diameter: .266/2.310
Year To: 2000
Pin Configuration: Centered
Pin Diameter (mm): 25.1
Rod (in): 6.135
Ring Pack: 1/16, 1/16, 3/16
Year From: 1970
Stroke (mm): 101.6
Stroke (in): 4
Alloy: 390
Year Range: 1970-2000
|
|
|
