John Deere 4045H Powertech Turbo Engine Inframe Overhaul Rebuild Kit, Piston RE545770
$987.29
Price may change upon customizations.
| Engine Kit Type: |
|
* denotes required field
Main Bearing Size*
You must select an option for 'Main Bearing Size'.
Rod Bearing Size*
You must select an option for 'Rod Bearing Size'.
Superior Quality Parts: Heavy Duty Pros parts meet and exceed the OEM quality specifications.
Fast Shipping: We ship from warehouses across the US to ensure the quickest delivery.
Expert Technical Advice: Industry repair technicians are standing by to provide expert advice for your repair.
Huge Savings: We offer competitive online pricing for significant savings.
|
Product Details & Specifications
Piston marked: RE545770
Bore: 4.19 in (106.5)
Pin Diameter: 1.625 in (41mm)
Tractor Models: 6110B, 6115J, 6120B, 6125E, 6125J, 6135B, 6B-1204, 6B-1354, 6B-954, 6E-1404
Combine Models: C100, C110, C110+, C120, W80, W100, W210
Corn Picker Models: Y110, Y115, Y210, Y215
Excavator Models: E130, E140, E140LC
Sprayer Model: 120J
Engine Models: 4045HBM02, 4045HCP05, 4045HCP06, 4045HCP10, 4045HCP11, 4045HCP20, 4045HCP23, 4045HCP25, 4045HCP26, 4045HCP27, 4045HCP28, 4045HCP29, 4045HCY10, 4045HFG82, 4045HFS88, 4045HFU82, 4045HXU01, 4045HXU09, 4045HYC04, 4045HYC06, 4045HYC07, 4045HYC08, 4045HYC11, 4045HYC12, 4045HYC15, 4045HYF01

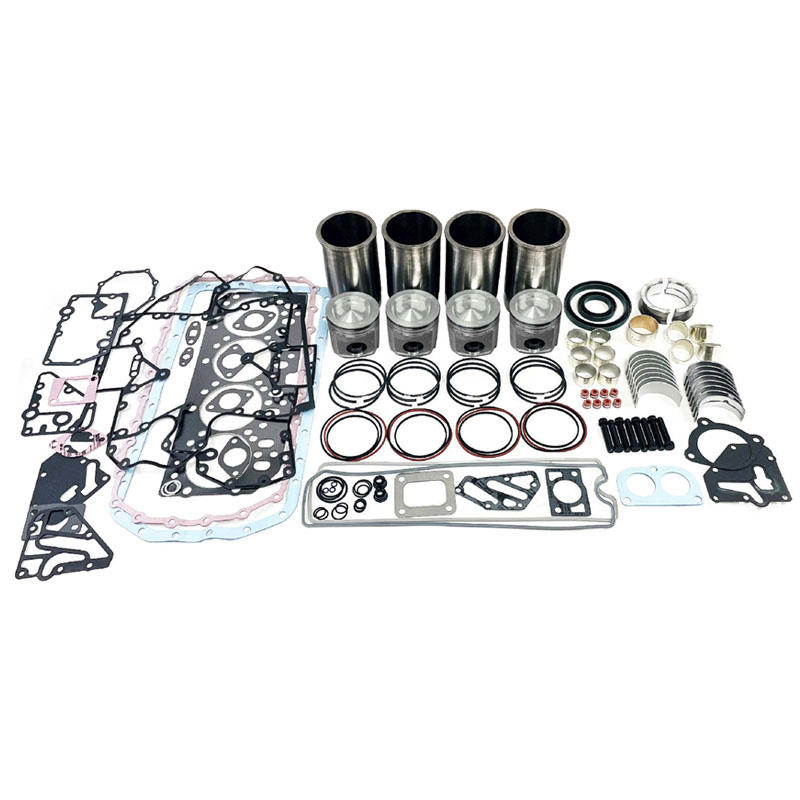

Inframe Kit Includes:
(4) Cylinder Kits (Piston, Liner, Piston Rings, Piston Pin, Pin Retainers)
(4) Rod Bearing Pairs
(1) Main Bearing Set
(1) Head Gasket Set
(1) Oil Pan Gasket
(8) Rod Bolts
Overhaul Kit Includes:
(4) Cylinder Kits (Piston, Liner, Piston Rings, Piston Pin, Pin Retainers)
(4) Rod Bearing Pairs
(1) Main Bearing Set
(1) Overhaul Gasket Set
(8) Rod Bolts
(1) Fuel System Grommet Set
(1) Rear Crankshaft Seal
(1) Front Crankshaft Seal
(4) Piston Pin Bushings
(1) Camshaft Bearing
(6) Balance Shaft Bushings*
*If you are replacing the balance shaft bearings in this kit, you will need to swedge these bushing once installed. This requires a special tool (John Deere Service Guard # JD255-1)
Please note: Cylinder head bolts must be replaced when rebuilding this engine. They are sold separately (see related products below).
|
Length: 5.394, check application for proper length
|
Length 4.410, check application for proper length
|
