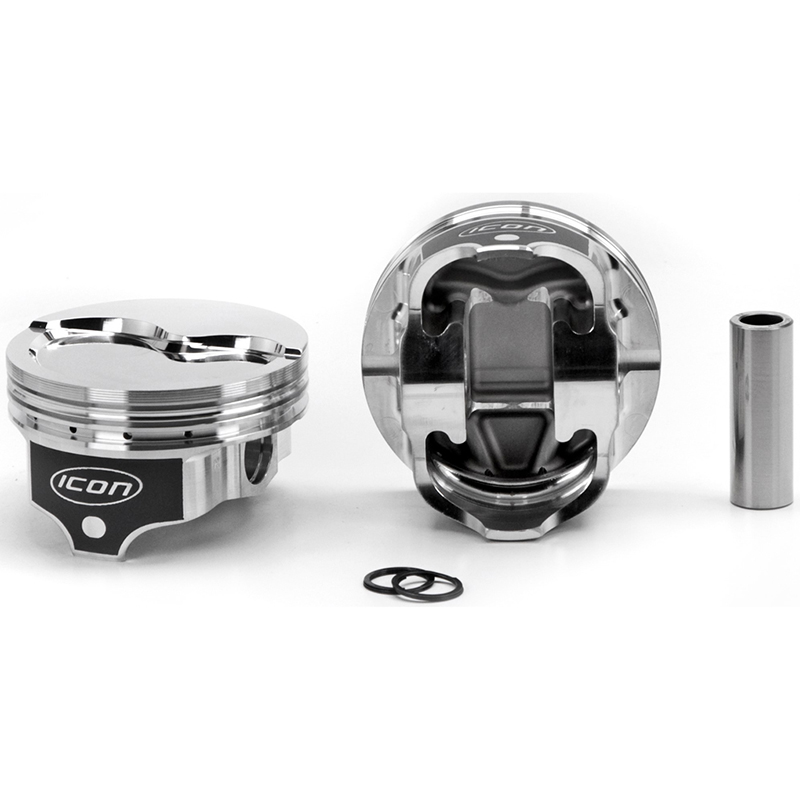

Icon Premium Piston Set, IC842.055
$629.99
MSRP: $699.72
You Save: $69.73 (10 %)
Ships directly from manufacturer.
Piston rings not included
Part Number: 804859
Brand: UEM Pistons
Manufacturer Part No: IC842.055
Superior Quality Parts: Heavy Duty Pros parts meet and exceed the OEM quality specifications.
Fast Shipping: We ship from warehouses across the US to ensure the quickest delivery.
Expert Technical Advice: Industry repair technicians are standing by to provide expert advice for your repair.
Huge Savings: We offer competitive online pricing for significant savings.
|
Product Details & Specifications
ICON Forged Piston - Chry 505 Rod 7.100 Step Dish +26.7cc 2V
Centered pin. Diameter is.9898" (BBC). Use 4250BD8.125 ring set for the.055" oversize piston. Use 440 block.
Sold As: Piston Set
Engine Manufacturer: Chrysler
Engine Family: Mopar Big Block RB
Engine Displacement (Liters): 8.3
Engine Displacement (cubic inches): 505
Bore Size (in): 4.32
Bore Size (mm): 109.7
Piston Head Type: Dish
Crown (cc): +26.7cc
Compression Ratio: 75-10.3, 78-10.0, 88-9.3
Top Land: 0.32
Pin Type: Press or Floating
Intake Valve Depth/Diameter: .215/2.300
Piston Material: Forged 2618 Alloy
Oversizes: .030 .040 .055
Alloy: 2618
Pin Diameter (mm): 25.1
Base Number: IC842
Oversize: .055"
Pin Configuration: Centered
Make for Engine Family: Mopar
Bore Diameter MM: 109.7
Compression Height MM: 37.7
Compression Height IN: 1.485
Bore Diameter IN: 4.32
Rod (in): 7.1
OE Deck Height: 10.725
Pin Diameter (in): 0.99
Year From: 2003
Ring Pack: 1/16, 1/16, 3/16
Pin Number: .990x2.750
Rod (mm): 180.34
Stroke (mm): 108
Stroke (in): 4.25
Lock: PRG110-3
Crown Type: STEP DISH 2V
Year Range: 2003-2006
Exhaust Valve Depth/Diameter: .194/1.880
Year To: 2006
Oversized: Yes
|
|
|
