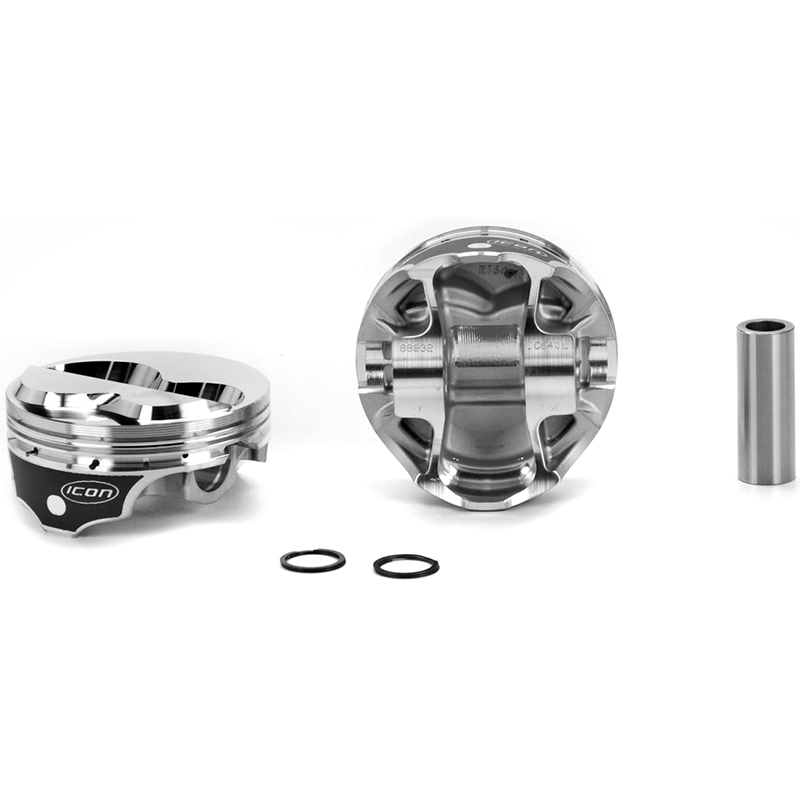

Icon Premium Piston Set, IC640.STD
$836.99
MSRP: $928.92
You Save: $91.93 (10 %)
Ships directly from manufacturer.
Piston rings not included
Part Number: 803837
Brand: UEM Pistons
Manufacturer Part No: IC640.STD
Superior Quality Parts: Heavy Duty Pros parts meet and exceed the OEM quality specifications.
Fast Shipping: We ship from warehouses across the US to ensure the quickest delivery.
Expert Technical Advice: Industry repair technicians are standing by to provide expert advice for your repair.
Huge Savings: We offer competitive online pricing for significant savings.
|
Product Details & Specifications
ICON Forged Piston - Chevy 400/434 Rod 6.125/6.000.212 Dome -7cc (V8)
Lateral gas ports. Centered pin. Fits Aftermarket 64cc cylinder heads. *Fits with Brodix IIx ASCS head. Use Hastings 2M5581.015 for.010 piston.
Sold As: Piston Set
Engine Manufacturer: Chevrolet
Engine Family: Chevrolet SB V8 Gen I
Engine Displacement (Liters): 6.6
Engine Displacement (cubic inches): 400
Bore Size (in): 4.125
Bore Size (mm): 104.8
Piston Head Type: Dome
Crown (cc): -7cc
Compression Ratio: 58-14.9, 64-13.6, 76-11.7
Top Land: 0.202
Pin Type: Press or Floating
Oversizes: STD, .010, .020, .025, .030, .040, .060
Base Number: IC640
Stroke (in): 3.75
Compression Height IN: 1
Pin Number: .927x2.500
Rod (in): 6.125
Pin Diameter (in): 0.927
Lock: PRJ100-3
Pin Configuration: Centered
Compression Height MM: 25.4
Bore Diameter MM: 104.8
Bore Diameter IN: 4.125
Stroke (mm): 95.3
Intake Valve Depth/Diameter: .320/2.200
Make for Engine Family: General Motors
Rod (mm): 155.6
Alloy: 2618
Oversized: No
Exhaust Valve Depth/Diameter: .257/1.720
OE Deck Height: 9.025
Oversize: STD
Pin Diameter (mm): 23.5
Year Range: -
Crown Type: .212" DOME
Piston Material: Forged 2618 Alloy
Ring Pack: 1.5mm, 1.5mm, 3.0mm
|
|
|
