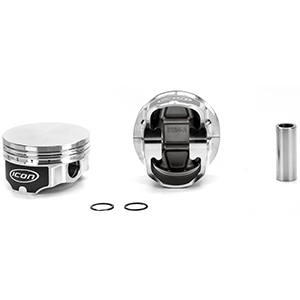

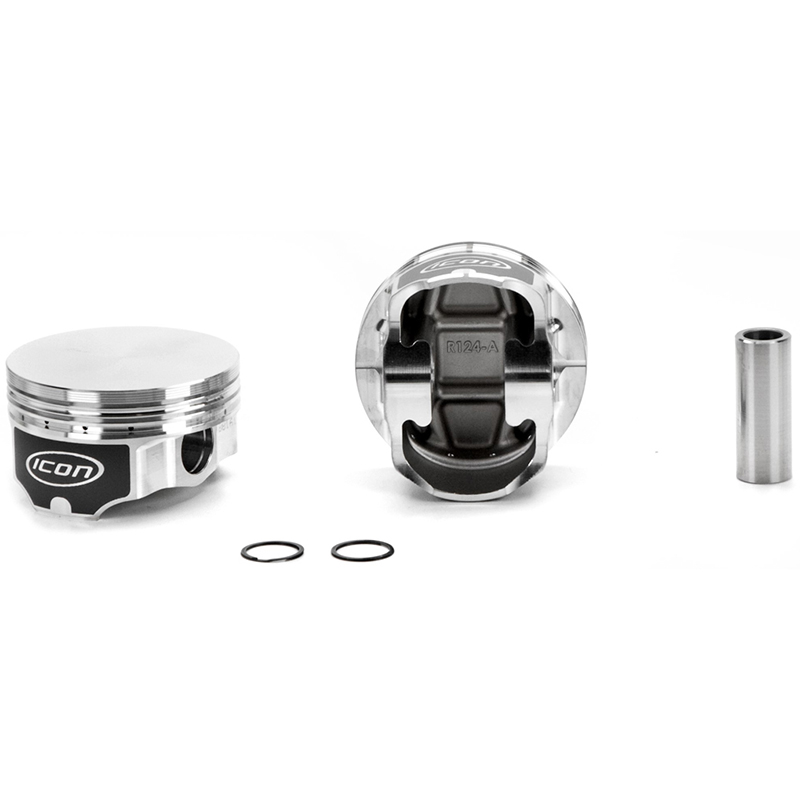

Icon Premium Piston Kit, IC882KTD.005
$726.99
MSRP: $807.45
You Save: $80.46 (10 %)
Ships directly from manufacturer.
Part Number: 805065
Brand: UEM Pistons
Manufacturer Part No: IC882KTD.005
Superior Quality Parts: Heavy Duty Pros parts meet and exceed the OEM quality specifications.
Fast Shipping: We ship from warehouses across the US to ensure the quickest delivery.
Expert Technical Advice: Industry repair technicians are standing by to provide expert advice for your repair.
Huge Savings: We offer competitive online pricing for significant savings.
|
Product Details & Specifications

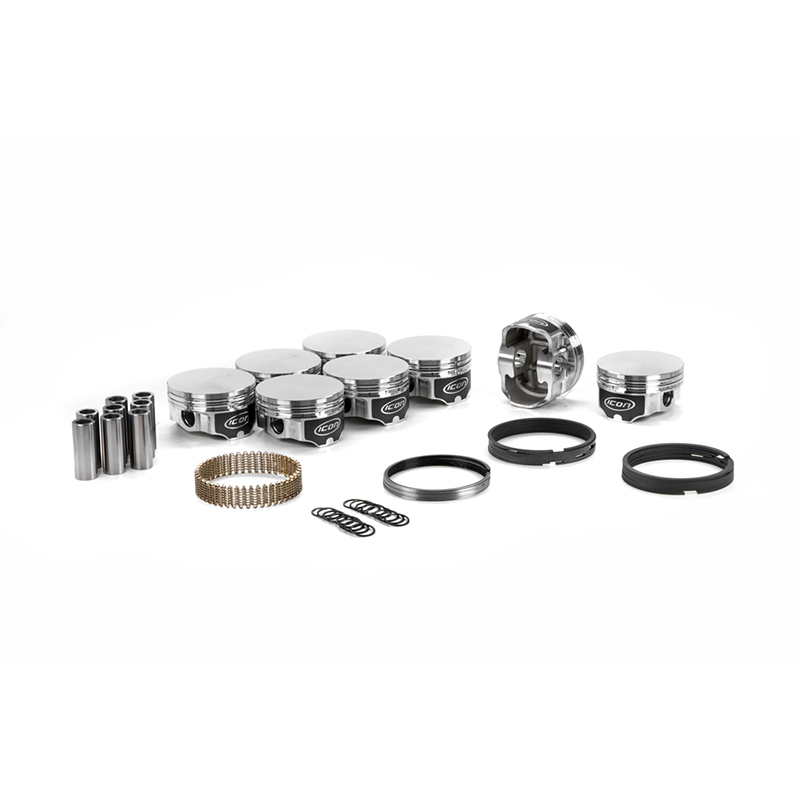

1 Set IC882.005/1 Set 3551CD8.005
Centered pin. Can be used with 2 and 4 valve heads. Clearance connecting rods as necessary. Piston sits 0.118" below deck.
Sold As: Kit with Rings
Engine Manufacturer: Ford
Engine Family: Ford SB V8 Modular
Engine Displacement (Liters): 4.6
Engine Displacement (cubic inches): 281
Bore Size (in): 3.5512
Bore Size (mm): 90.2
Compression Ratio: 42-13.0, 46-12.1, 52-11.0
Top Land: 0.21
Pin Type: Press or Floating
Pin Diameter (mm): 22
Oversize: .005"
OE Deck Height: 8.937
Pin Diameter (in): 0.866
Stroke (mm): 89.99
Alloy: 2618
Oversizes: .005, .010, .020, .030
Pin Number: .866x2.250
Compression Height MM: 31
Compression Height IN: 1.22
Bore Diameter IN: 3.5512
Bore Diameter MM: 90.2
Crown Type: FLAT TOP
Year Range: -
Ring Pack: 1.5mm, 1.5mm, 3.0mm
Grade Type: Performance
Rod (in): 5.933
Pin Configuration: Centered
Rod (mm): 150.698
Make for Engine Family: Ford
Base Number: IC882
Lock: RRN-86
Oversized: Yes
Piston Material: Forged 2618 Alloy
Stroke (in): 3.543
|
|
|
