Click image to enlarge
|

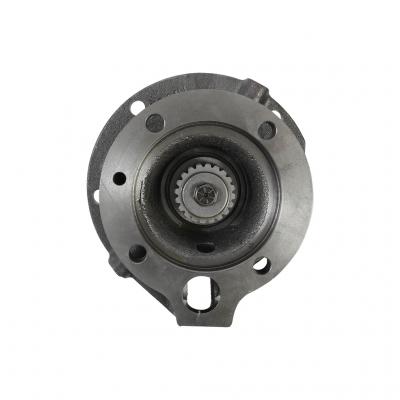

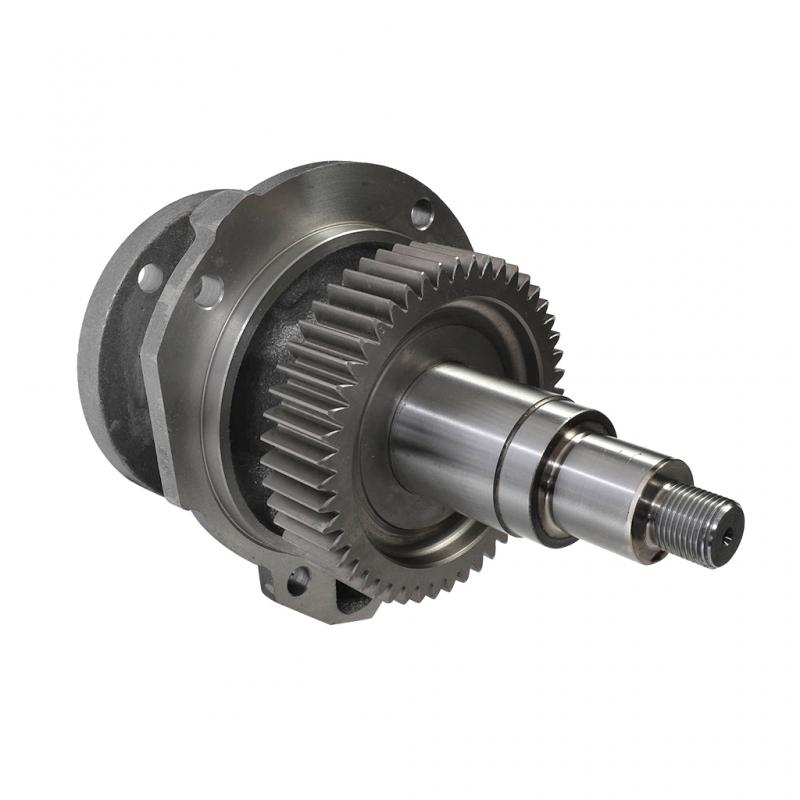

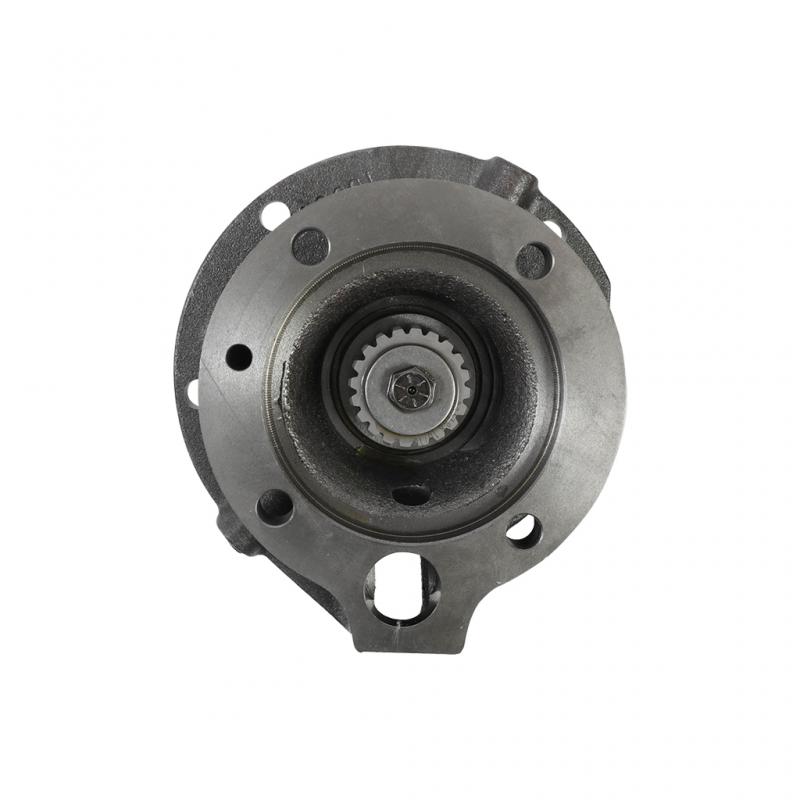

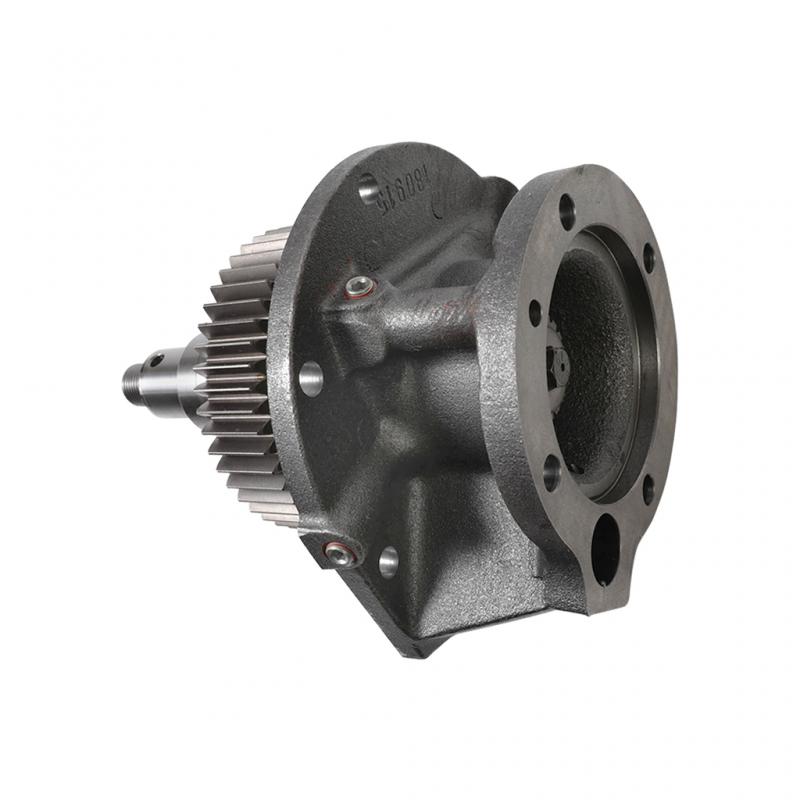

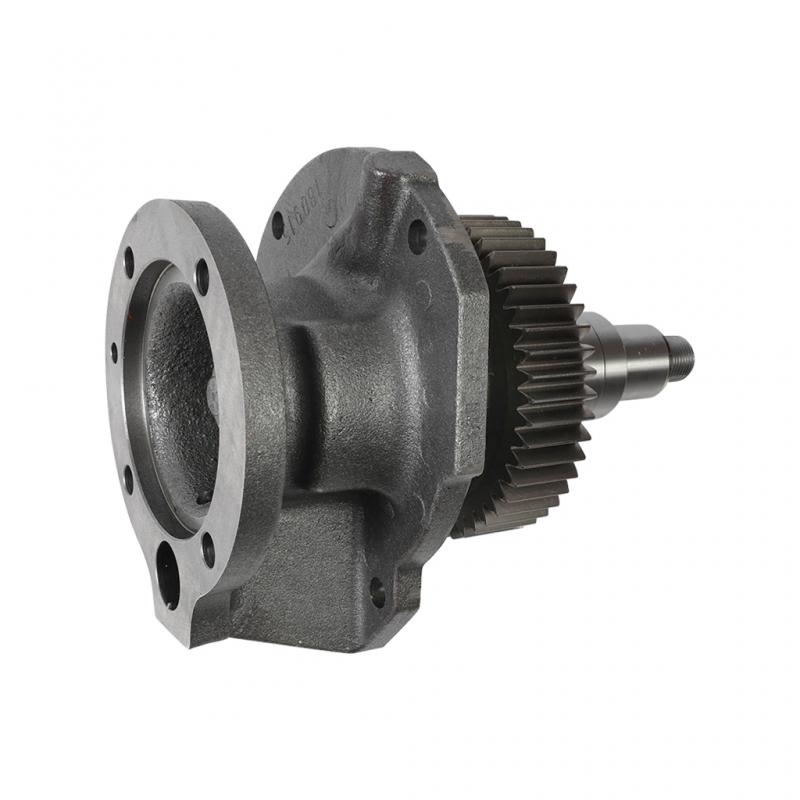

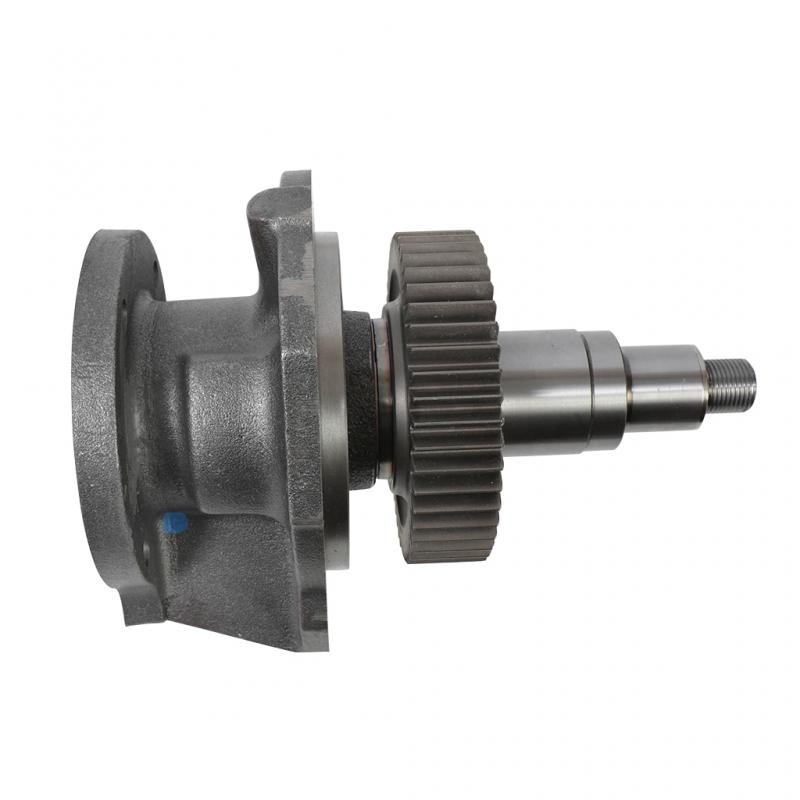

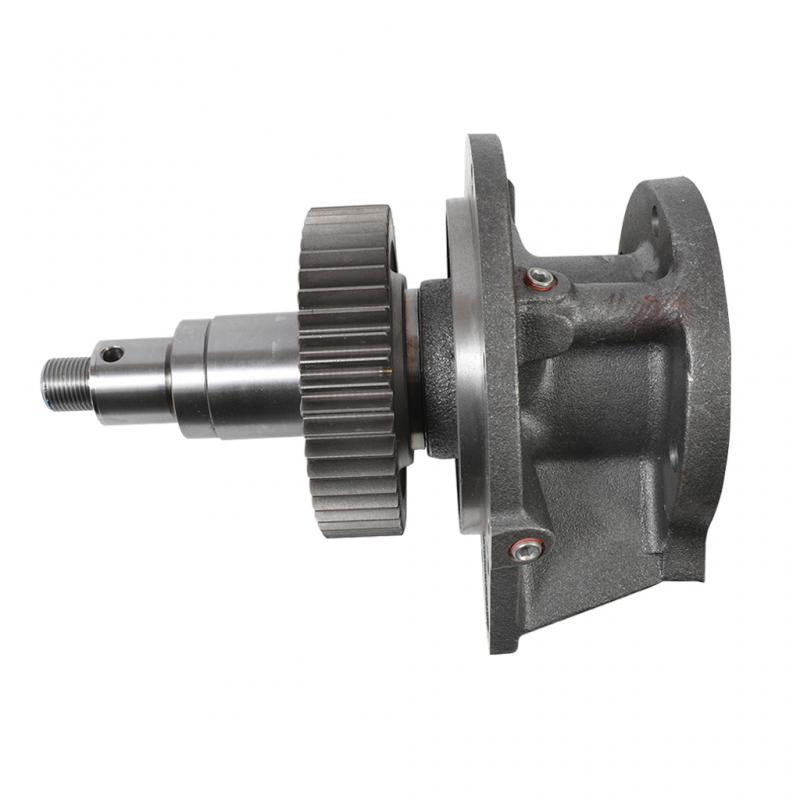

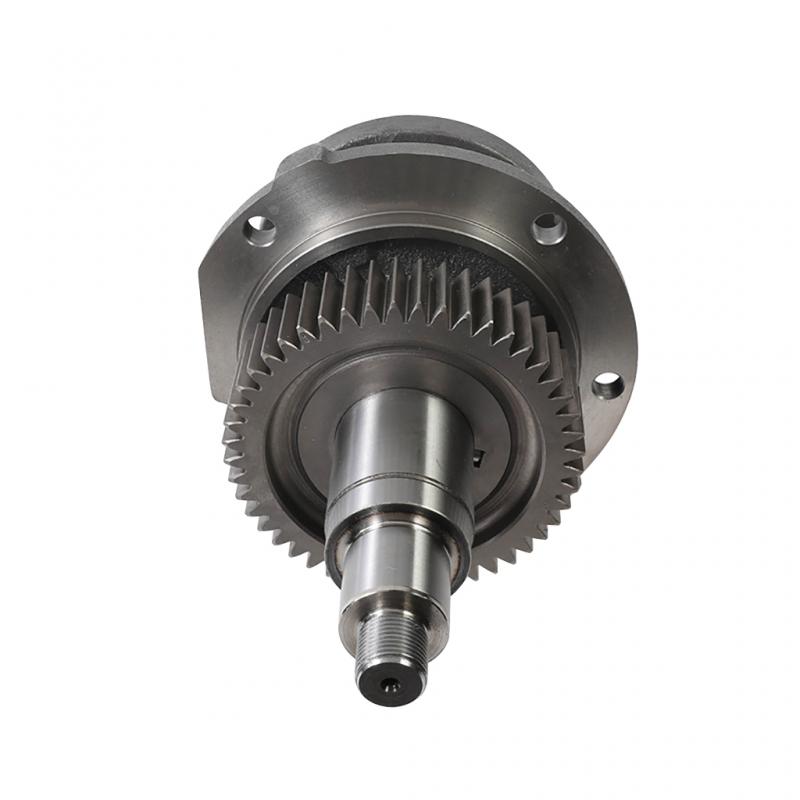

Cummins N14 Accessory Drive, Large Shaft, 3078307
$481.92
MSRP: $556.83
You Save: $74.91 (13 %)
Part Number: 166442
Brand: PAI
Manufacturer Part No: 3078307
Superior Quality Parts: Heavy Duty Pros parts meet and exceed the OEM quality specifications.
Fast Shipping: We ship from warehouses across the US to ensure the quickest delivery.
Expert Technical Advice: Industry repair technicians are standing by to provide expert advice for your repair.
Huge Savings: We offer competitive online pricing for significant savings.
|
Product Details & Specifications
The Cummins N14 Accessory Drive (Part Number 3078307) is a high-quality replacement component designed for Cummins N14 engines produced from 1995 onwards.
Key Features:
-
Large Shaft Design: Features a 2.0-inch (50.8 mm) drive shaft, suitable for engines with large accessory drive shafts.
-
Straight Cut Gear: Equipped with a straight-cut gear for efficient power transmission to engine accessories.
-
Cast Iron Housing: Constructed with a durable cast iron housing, ensuring longevity and resistance to wear.
Specifications:
Fits Cummins N14 engines produced 1995 and newer.
This Accessory Drive Assembly consists of the following parts:
Assembly Housing AR45724
Accessory Drive Screw 3000173
Spline Hub Coupling 3000174
Flat Washer 3014103
Thrust Washer 3026557
Accessory Drive Spur Gear 3078310 (Straight Cut)
Accessory Drive Shaft 3076500
Groove Pin 3034438
Thrust Washer 3026556
Dowel Pin 70550
Mounting Gasket 3069101
Accessory Drive Features
Cast iron housing
Straight gear
Large shaft 2.0 inch
Shaft diameter stepped: 1.375, 1.905, 1.997
4.75 length from gear
We recommend changing the accessory drive bushing and seal when installing this new accessory drive.
Applications:
This accessory drive is compatible with Cummins N14 engines manufactured from 1995 onwards, including CELECT and CELECT Plus models.
Benefits:
-
Enhanced Engine Performance: Ensures efficient operation of engine accessories, contributing to overall engine efficiency.
-
Durability: Constructed from high-quality materials, offering resistance to wear and extending component life.
-
Maintains OEM Standards: Adheres to original equipment manufacturer specifications, ensuring compatibility and performance consistency.
|
Cummins N14 '91-Up, For engines with Large (2.0") Drive Shaft - Includes Wear Sleeve
|
Cummins N14 '91-Up, For engines with Large (2.0") Drive Shaft - Does Not include Wear Sleeve
|
For large shaft 2.0, in front gear cover, 3411389, 3076091
|
For large (2.0") shaft Accessory Drive, includes Wear Ring
|
For Large (2.0") Accessory Drive, does not include wear ring
|
|
|
|
