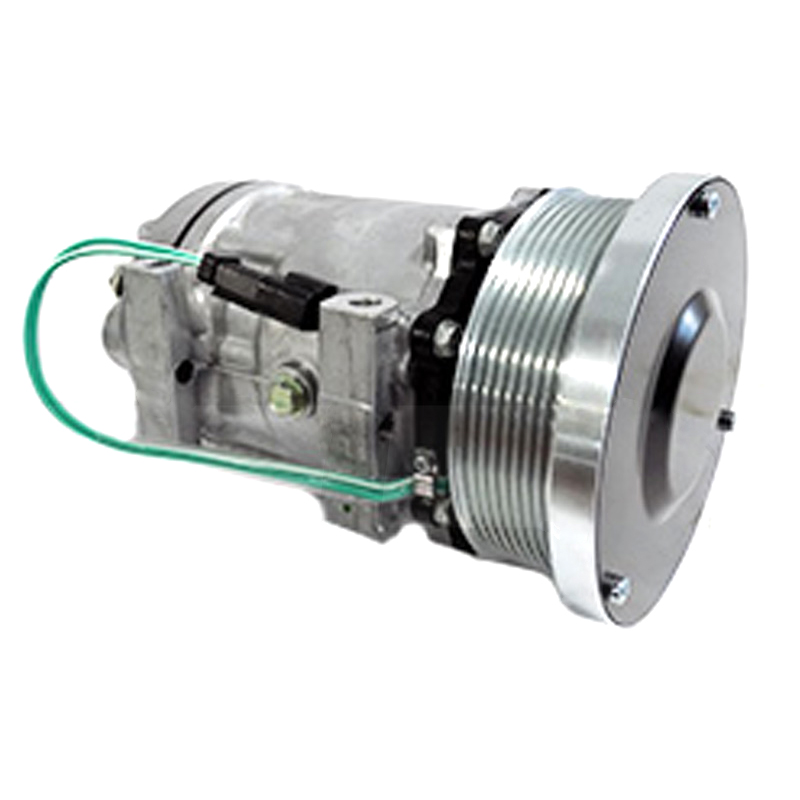

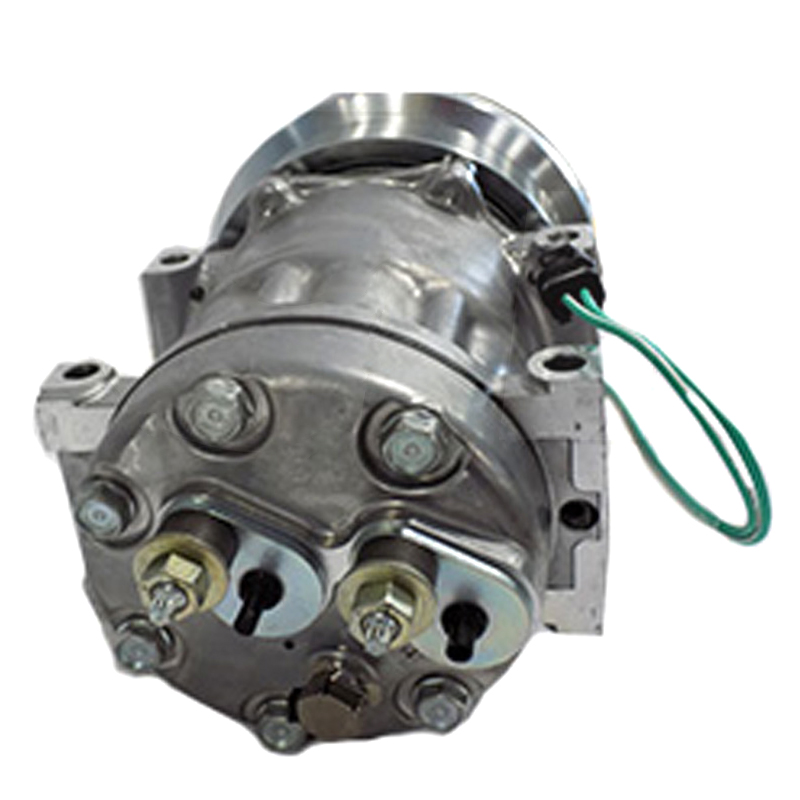

Caterpillar Air Conditioning Compressor, 3201291
$340.83
MSRP: $352.28
You Save: $11.45 (3 %)
Part Number: 189550
Brand: HDP
Manufacturer Part No: 3201291
Superior Quality Parts: Heavy Duty Pros parts meet and exceed the OEM quality specifications.
Fast Shipping: We ship from warehouses across the US to ensure the quickest delivery.
Expert Technical Advice: Industry repair technicians are standing by to provide expert advice for your repair.
Huge Savings: We offer competitive online pricing for significant savings.
|
Product Details & Specifications
Caterpillar Refrigerant Compressor (24 V Clutch)
Description: The HVAC system provides heating, cooling and filtering of fresh and/or recirculating air in the operator compartment of a Cat machine. Cat compressors pressurize fluid to maintain flow rate and increase pressure required for the application.
Attributes: Heavy duty 7 cylinder compressor Cast aluminum body Clutch type: Sealed Heavy Duty Clutch voltage: 24 V Pulley type: PV-8 Refrigerant compatibility: R134a Includes pigtail harness with 2 pin DT connector Recommended RPM: 2700??200 Max RPM: 4000 For use only on systems which provide a low pressure shut-off switch in the high pressure side
Specifications: Bore Diameter (in): 1.2 Connector Type: 2 Pin DT Length (in): 1.3 (Stroke) Material Description: Cast Aluminum Outside Diameter (in): 5.3 Overall Length (in): 10.2 Pins: 2 Voltage (VAC): 24 (VDC) Voltage (volts): 24
Fits the following applications: Earthmoving Compactor 825K 826K 836K
Wheel-Type Loader 924K 926M 930K 930M 938K 938M 950K 950L 950M 950M Z 962 962K 962L 962M 962M Z 966F 966F II 980 980K 980K HLG 980L 980M 980XE 982 982M 982XE 988K 988K XE
Petroleum Products TH48 TH48-E70
Wheel-Type Skidder 525D 535D 545D 555D
Off-Highway Truck 770G 770G OEM 772G 772G OEM 773G 773G LRC 773G OEM 773GC 775G 775G LRC 775G OEM 777D 777G
Engine - Industrial C27 C32 C4.4 C6.6 C7.1
Track-Type Loader 953K 963 963K
Telehandler C4.4
Articulated Dump Truck 730C 730C2 730C2 EJ 735B 735C 740B 740C 745C
Road Reclaimer RM500B
Forest Products 2384C 2384D 2470C 2484C 2484D 2570C 2570D 2670C 2670D 2864C 553C 559C 563C 559D 563D 573C 573D 579C 579D 586C
Motor Grader 120 120M 2
Material Handler C7.1 MH3022 MH3024 MH3026
Wheeled Excavator M314F M315F M316F M317F M318F M320F M322F M323F
Paving Compactor CCS9 CP-54B CP-56B CP-68B CP-74B CP54B CP56B CP68B CP74B CP76B CS-54B CS-56B CS-64B CS-66B CS-68B CS-74B CS-76B CS-78B CS-79B CS54B CS56B CS64B CS68B CS74B CS78B CS79B CW-34 CW34
Wheel Dozer 824K 834K
Pipelayer PL61
Wheel Tractor-Scraper 621H 621K 621K OEM 623H 623K 623K LRC 627H 627K 627K LRC 631K 637K
Track-Type Tractor D4 D5 D6K D6K2 D6K2 LGP D6K2 XL D6N D6N LGP D6N OEM D6N XL
|
|
|
